Same model may have multiple batches, images only for reference.

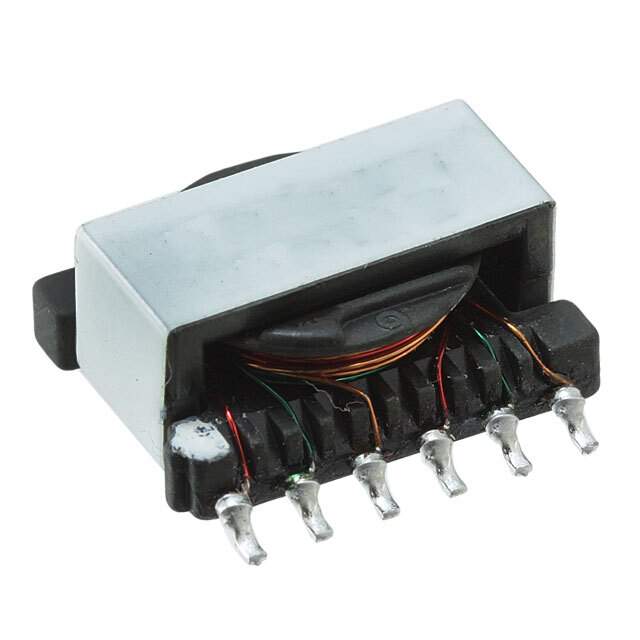

VPH2-1600-R Real Image
Same model may have multiple batches, images only for reference.

VPH2-1600-R

Part No VPH2-1600-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description PULSE XFMR 160UH SMD / For SMPS Transformer Isolation Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Switching Converter, SMPS Transformers
Mfr Eaton - Electronics Division
Series VERSA-PAC®
Package Tape & Reel
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.642" L x 0.661" W (16.30mm x 16.80mm)
Height - Seated (Max) 0.307" (7.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names VPH2-1600,VPH21600R,VPH2-1600-ND,283-3671-6,VPH2-1600-R-ND,283-3671-2,283-3671-1
Standard Package 300
Win Source Part Number 1061543-VPH2-1600-R
Ultra Librarian 3D Model Ultra Librarian VPH2-1600-R CAD Model

Description

The Eaton VERSA-PAC VPH2-1600-R transformer from Eaton - Electronics Division is a high-quality transformer that is designed for use in a wide range of electronic applications.

  • Height: 0.307" (7.80mm)
  • Packaging: Tape & reel
  • Mounting: SMD (SMT)
  • Standard Package: 300
  • Operating Temperature Range: -40°C to 125°C
  • Dimensions: 0.642" L x 0.661" W (16.30mm x 16.80mm)
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
  • Other Part Numbers: SRF3216-161Y, SRU1048-151Y, SRR4028-151Y, 744062151, 744066151, and 744065151.
