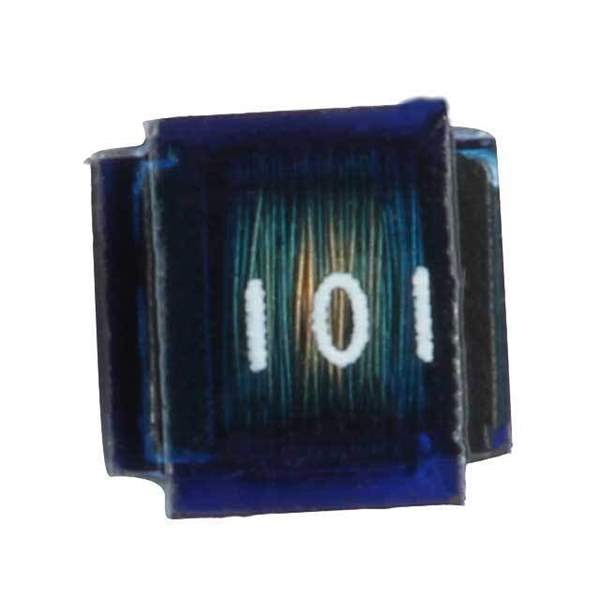

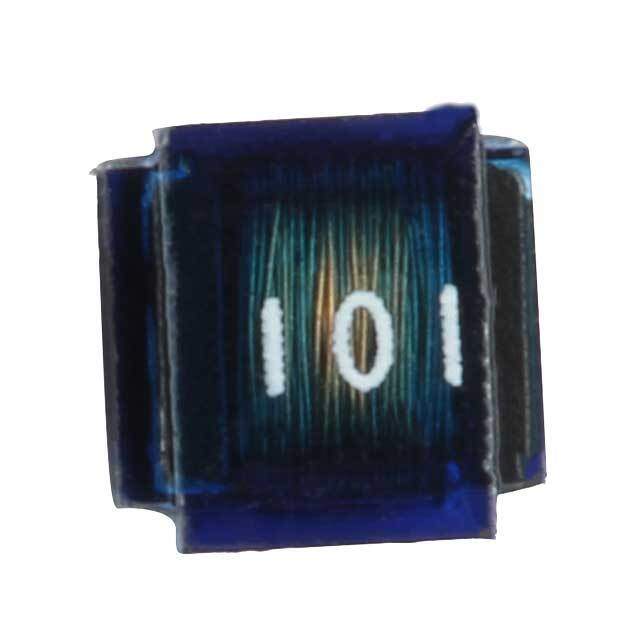

WCL2520-R120-R Real Image
Same model may have multiple batches, images only for reference.

WCL2520-R120-R

Part No WCL2520-R120-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 120NH 800MA 150MOHM SM / 120 nH Unshielded Drum Core, Wirewound Inductor 800 mA 150mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series WCL2520
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 120 nH
Tolerance ±5%
Current Rating (Amps) 800 mA
Shielding Unshielded
DC Resistance (DCR) 150mOhm Max
Q @ Freq 12 @ 25.2MHz
Frequency - Self Resonant 850MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 25.2 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max) 0.083" (2.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 283-WCL2520-R120-RTR
Standard Package 2,000
Win Source Part Number 1104578-WCL2520-R120-R
Ultra Librarian 3D Model Ultra Librarian WCL2520-R120-R CAD Model

Description

The WCL2520-R120-R is a drum core, wirewound inductor from Eaton.

  • Manufacturer: Eaton
  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Packaging: Tape and Reel
  • Inductance: 120 nH
  • Tolerance: ±5%
  • Height: 0.083 inches (2.10 mm)
  • DC Resistance: 150 mOhm Max
  • Supplier Device Package: 1008
  • Current Rating: 800 mA
  • Application: Inductors, coils, and chokes
