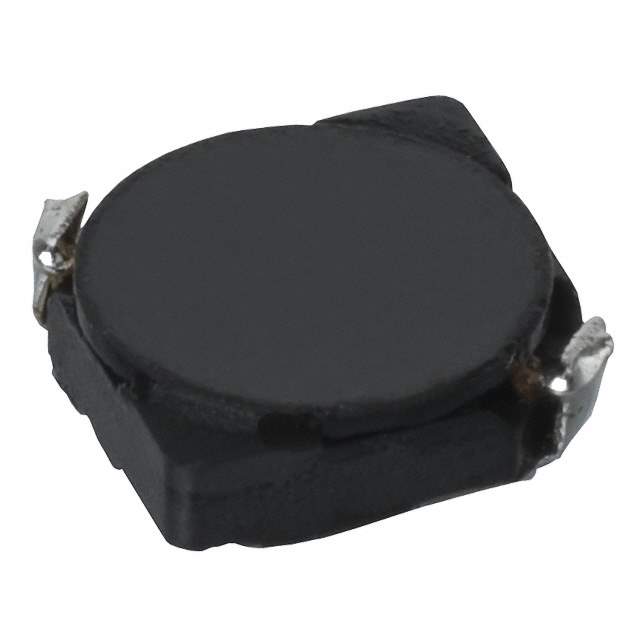

The CDRH5D28-180 is a fixed inductor manufactured by ECM Electronics Limited. It is a shielded power inductor suitable for a wide range of applications, including DC-DC converters and power supply circuits. This component is known for its compact size and high current handling capabilities.

Applications

• DC-DC converters
• Power supplies
• Notebook computers
• Portable devices
• Filtering circuits

Features

• Shielded construction for low EMI
• High current capacity
• Low DC resistance
• Small footprint
• RoHS compliant

Benefits

• Reduced electromagnetic interference, critical for sensitive applications.
• Efficient power conversion due to low DC resistance, minimizing power loss.
• Space-saving design for use in compact electronic devices.
• Reliable performance in various operating conditions.
• Compliant with environmental regulations.

Technical Specifications

The CDRH5D28 series generally features:

• Inductance values tailored for different applications. For the CDRH5D28-180, it's 18uH.
• Saturation current that allows handling high peak currents without significant inductance drop.
• Operating temperature range suitable for industrial and commercial environments.

Refer to the manufacturer's datasheet for the exact specifications of the CDRH5D28-180, including inductance, tolerance, saturation current, and DC resistance.

The shielded construction of the CDRH5D28-180 effectively minimizes electromagnetic interference (EMI), making it suitable for applications where noise reduction is essential. The inductor's small footprint and high current handling capability make it a versatile choice for space-constrained power supply designs. The low DC resistance contributes to improved energy efficiency, reducing heat generation and extending battery life in portable devices. The robust design and high-quality materials ensure reliable performance and long-term stability in demanding environments.
