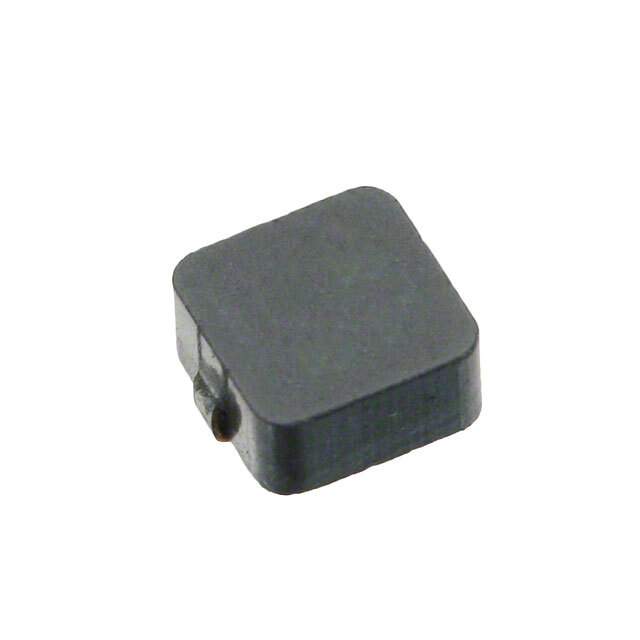

Same model may have multiple batches, images only for reference.

IHLP1212ABERR22M11

Name: IHLP1212ABERR22M11
Brand: Vishay
SKU: 460319
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP1212ABERR22M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 220NH 9.3A 11.4 MOHM
Datasheet	IHLP1212ABERR22M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Molded
Inductance	220nH
Tolerance	±20%
Current Rating	9.3A
Current - Saturation	9.3A
DC Resistance (DCR)	11.4 mOhm Max
Frequency - Self Resonant	220MHz
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.047" (1.20mm)
Win Source Part Number	1045176-IHLP1212ABERR22M11
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IHLP1212ABERR22M11 CAD Model

Alternative Products

Description

The IHLP1212ABERR22M11 is a molded inductor from Vishay.

Current Rating: 9.3A
Inductance: 220nH
Seated Height: 0.047" (1.20mm)
Mounting: Surface mount
Tolerance: ±20%
Saturation Current: 9.3A
Self-Resonant Frequency: 220MHz
Test Frequency: 100kHz
DC Resistance: 11.4 mOhm Max
Temperature Range: -55°C to 125°C
