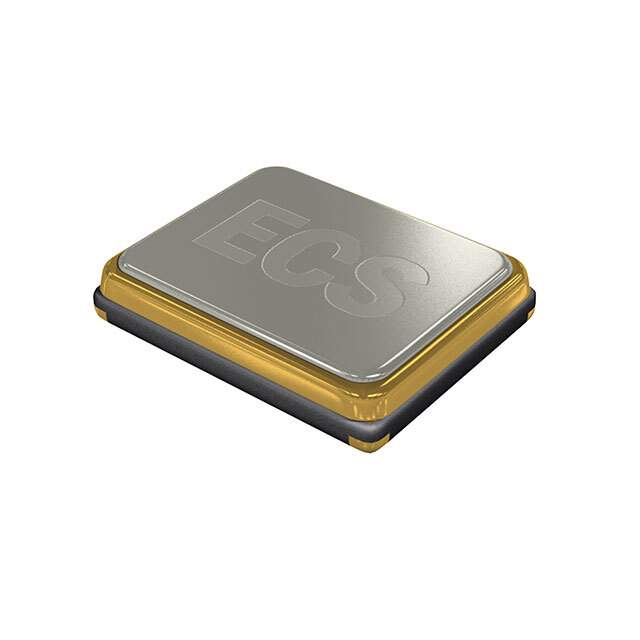

ECS-160-10-36Q-ES-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-160-10-36Q-ES-TR

Part No ECS-160-10-36Q-ES-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 16.0000MHZ 10PF SMD / 16 MHz ±30ppm Crystal 10pF 80 Ohms 4-SMD, No Lead
Datasheet
ECS-160-10-36Q-ES-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series ECX-2236Q
Package Tape & Reel
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names XC2181CT,XC2181TR,ECS-160-10-36Q-ES-TR-ND,XC2181DKR
Standard Package 3,000
Win Source Part Number 1226023-ECS-160-10-36Q-ES-TR
Ultra Librarian 3D Model Ultra Librarian ECS-160-10-36Q-ES-TR CAD Model

Description

The ECX-2236Q series from ECS Inc. is a MHz crystal with a frequency of 16 MHz and a load capacitance of 10pF.

  • Frequency: 16 MHz
  • Load Capacitance: 10pF
  • Operating Mode: Fundamental
  • ESR: 80 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Package Type: Tape & Reel
  • Height: 0.024" (0.60mm)
  • AEC-Q200: Rated
  • Operating Temperature: -40°C to 125°C
  • Package/Case: 4-SMD, no lead
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0050
  • Manufacturer: ECS Inc.
  • Other Names: XC2181CT, XC2181TR, ECS-160-10-36Q-ES-TR-ND, XC2181DKR
