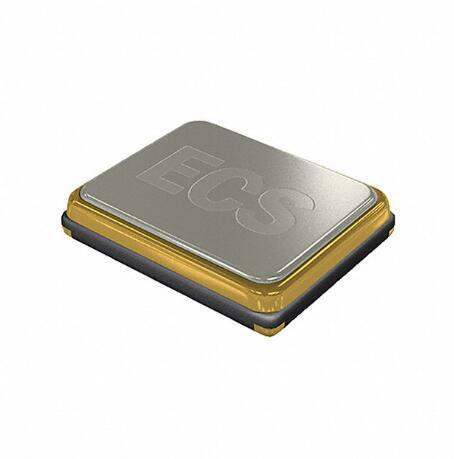

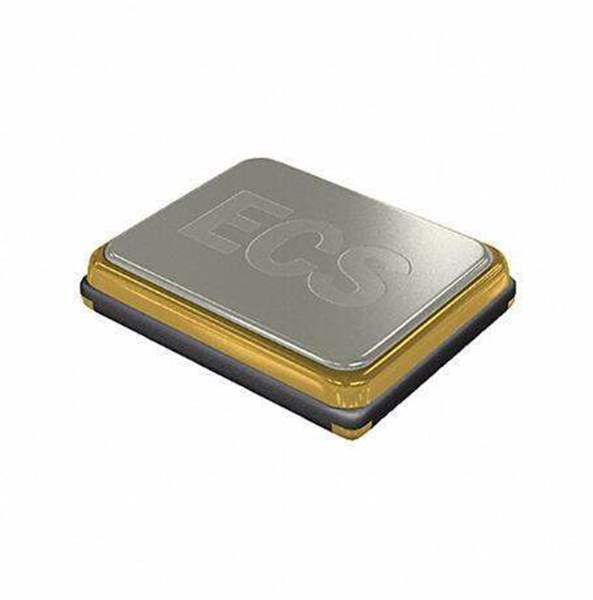

ECS-196.6-18-33-JGN-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-196.6-18-33-JGN-TR

Part No ECS-196.6-18-33-JGN-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 19.6608MHZ 18PF SMD
Datasheet
ECS-196.6-18-33-JGN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 19.6608 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Win Source Part Number WS1211049-ECS-196.6-18-33-JGN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-196.6-18-33-JGN-TR CAD Model

Description

19.6608 MHz ±20ppm Crystal 18pF 80 Ohms 4-SMD, No Lead
