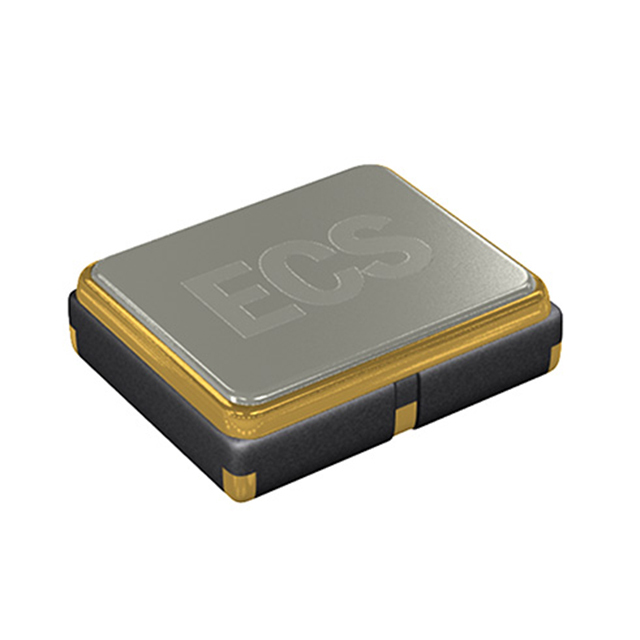

Same model may have multiple batches, images only for reference.
ECS-2520MV-160-CN-TR ECS Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ECS-2520MV-160-CN-TR

Part No ECS-2520MV-160-CN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description OSC XO 16.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, ResonatorsOscillators
Mfr ECS Inc.
Series ECS-2520MV MultiVolt?
Part Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 16 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.6V ~ 3.6V
Frequency Stability ±25ppm
Operating Temperature -40°C ~ 85°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 10μA
Ultra Librarian 3D Model Ultra Librarian ECS-2520MV-160-CN-TR CAD Model
