ECS-286.3-20-46X ECS Inc. – Price, Stock & Datasheet

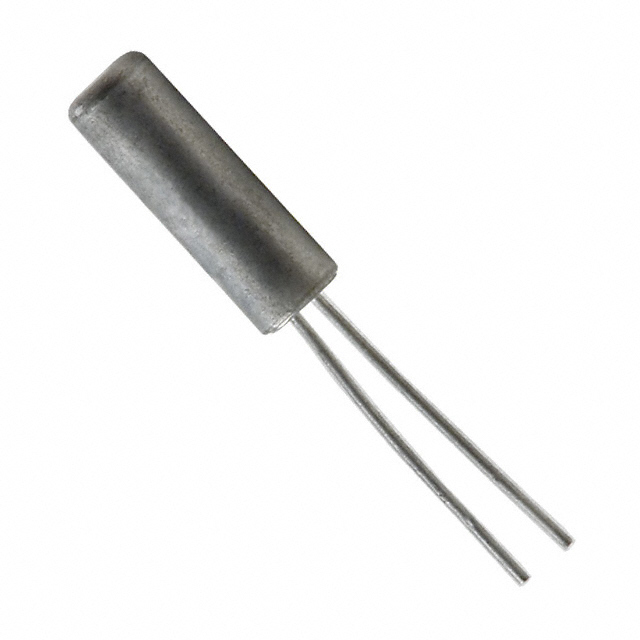

Same model may have multiple batches, images only for reference.

ECS-286.3-20-46X

Part No ECS-286.3-20-46X
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 28.63636MHZ 20PF TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type MHz Crystal
Frequency 28.63636 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Through Hole
Case / Package HC-46/X
Size / Dimension 0.260" L x 0.157" W (6.60mm x 4.00mm)
Height - Seated (Max) 0.071\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528998-ECS-286.3-20-46X
Ultra Librarian 3D Model Ultra Librarian ECS-286.3-20-46X CAD Model
