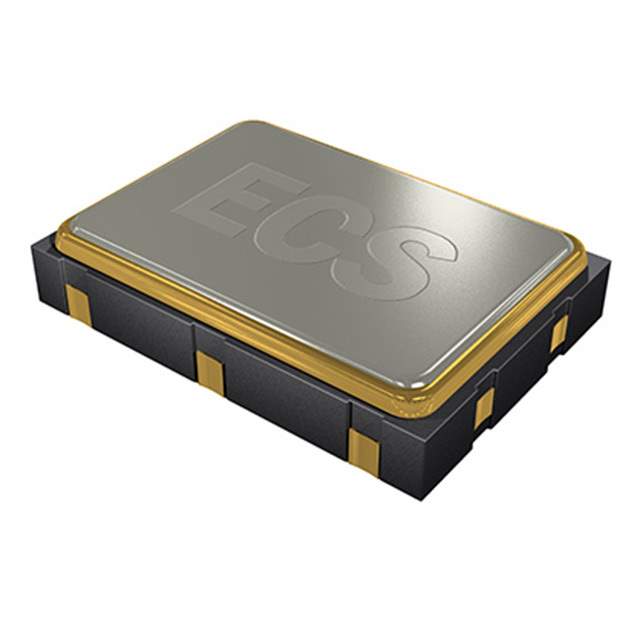

ECS-3225S30-160-EN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-3225S30-160-EN-TR

Part No ECS-3225S30-160-EN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 16.0000MHZ HCMOS SMD / 16 MHz XO (Standard) HCMOS Oscillator 3V Enable/Disable 6-SMD, No Lead
Datasheet
ECS-3225S30-160-EN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr ECS Inc.
Series ECS-3225S
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 16 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3V
Frequency Stability ±15ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1056797-ECS-3225S30-160-EN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3225S30-160-EN-TR CAD Model

Description

The 1056797-ECS-3225S30-160-EN-TR MHz crystal is a high-quality crystal oscillator that is designed for use in various electronic devices.

  • Frequency: It has a frequency of 16MHz
  • Series: and is a part of the ECS-3225S series.
  • Mode: The crystal operates in the XO (Standard) mode
  • Mounting: and is mounted using surface mount technology.
  • Package: It comes in a 6-SMD, no lead package
  • Temperature Range: and has a temperature range of -40°C to 85°C.
  • Status: This product is obsolete.
