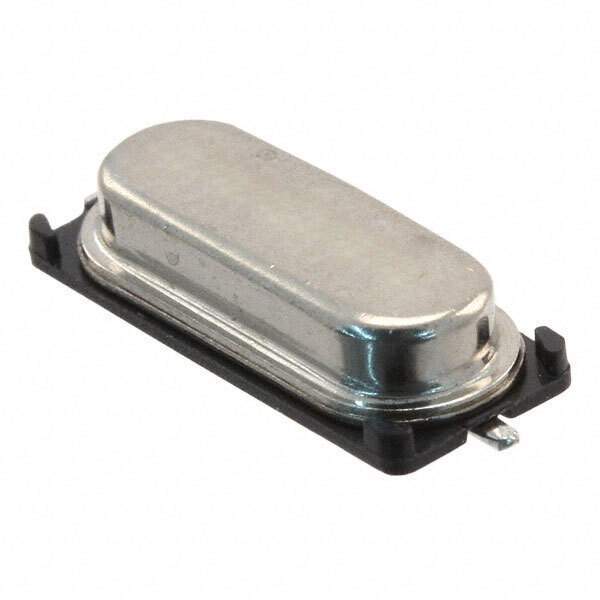

ECS-35-18-5PVX Real Image
Same model may have multiple batches, images only for reference.

ECS-35-18-5PVX

Part No ECS-35-18-5PVX
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 3.579545MHZ 18PF SMD / Crystal 3.579545MHz ±30ppm (Tol) ±50ppm (Stability) 18pF FUND 150Ohm 2-Pin SMD T/R
Datasheet
ECS-35-18-5PVX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series CSM-7SSX
Packaging Reel package
Type MHz Crystal
Frequency 3.579545MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 150 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 70°C
Mounting SMD
Package HC49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Maximum) 0.102" (2.60mm)
Win Source Part Number 773652-ECS-35-18-5PVX
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ECS-35-18-5PVX CAD Model

Description

The ECS Inc. CSM-7SSX series MHz crystal is a high-quality electronic component that is designed to provide reliable performance in various applications.

  • Frequency: 3.579545MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • ESR: 150 Ohm
  • Load Capacitance: 18pF
  • Package: HC49/US
  • Mounting: SMD
  • Operating Temperature Range: -10°C to 70°C
  • Family: CSM-7SSX
  • Category: Crystals
  • Packaging: Reel
  • Estimated EOL Date: 2027
