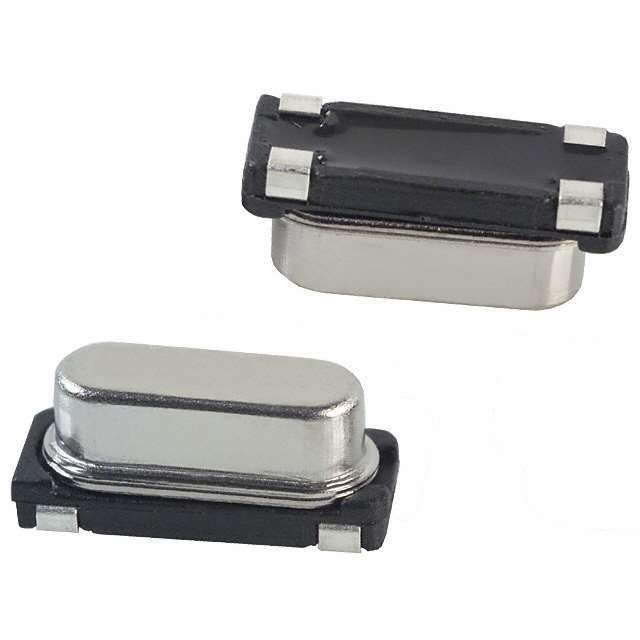

ECS-80-16-28A-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-80-16-28A-TR

Part No ECS-80-16-28A-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 8.0000MHZ 16PF SMD / Crystal 8MHz ±30ppm (Tol) ±50ppm (Stability) 16pF FUND 80Ohm 4-Pin SMD T/R
Datasheet
ECS-80-16-28A-TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series CSM-4A
Type MHz Crystal
Frequency 8MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 80 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 70°C
Mounting SMD
Package HC49/US
Dimension 0.492" L x 0.191" W (12.50mm x 4.85mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 771084-ECS-80-16-28A-TR
Popularity Medium
Supply and Demand Status Limited
Introduction Date December 18, 2000
ECCN EAR99
Country of Origin Republic of Korea, Taiwan
Estimated EOL Date 2020
Ultra Librarian 3D Model Ultra Librarian ECS-80-16-28A-TR CAD Model

Description

The ECS Inc. CSM-4A 8MHz crystal is a surface-mount, MHz crystal that operates in a fundamental mode.

  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 16pF
  • ESR: 80 Ohm
