Same model may have multiple batches, images only for reference.

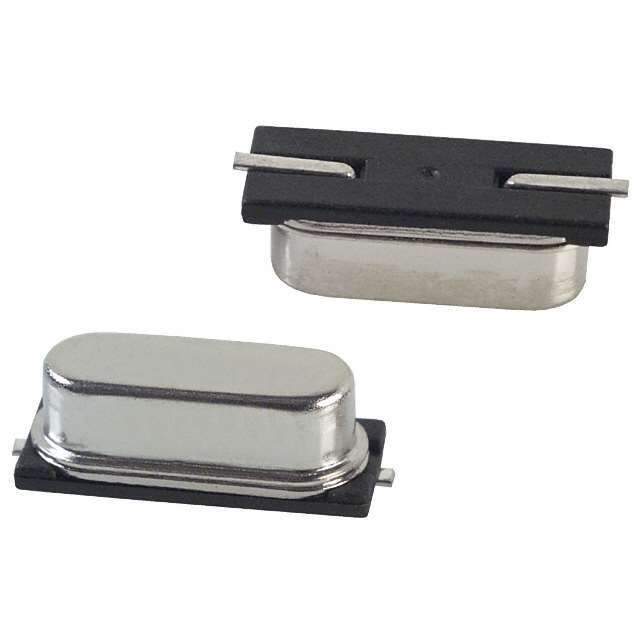

ECS-80-18-5PXDN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-80-18-5PXDN-TR

Part No ECS-80-18-5PXDN-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF SMD / Crystal 8MHz ±30ppm (Tol) ±100ppm (Stability) 18pF FUND 60Ohm 2-Pin SMD T/R
Datasheet
ECS-80-18-5PXDN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series CSM-7X-DN
Packaging Reel package
Type MHz Crystal
Frequency 8MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package HC49/US
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Win Source Part Number 773653-ECS-80-18-5PXDN-TR
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ECS-80-18-5PXDN-TR CAD Model

Description

The ECS Inc. 773653-ECS-80-18-5PXDN-TR is a MHz crystal oscillator with a frequency of 8MHz.

  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±30ppm
  • ESR: 60 Ohm
  • Load Capacitance: 18pF
  • Package: HC49/US
  • Mounting: SMD
  • Operating Temperature Range: -40°C to 85°C
  • Series: CSM-7X-DN
  • Packaging: Reel
  • Supply and Demand Status: Limited
  • Halogen Free: Yes
