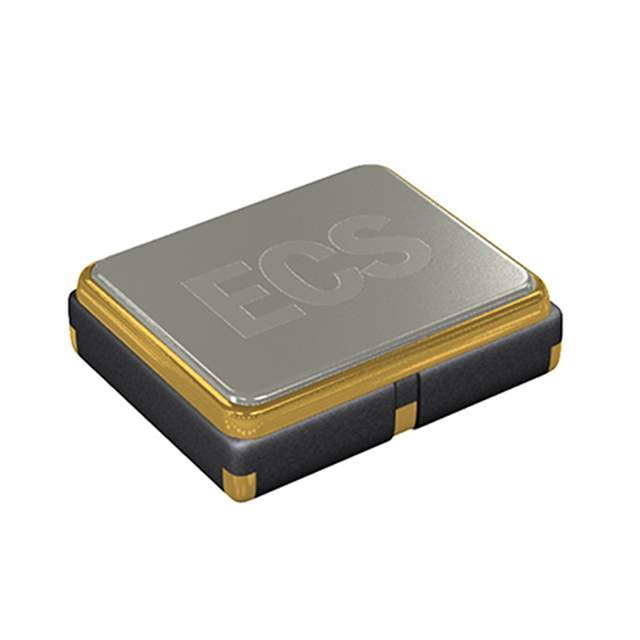

ECS-2520MV-250-CN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-2520MV-250-CN-TR

Part No ECS-2520MV-250-CN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ CMOS SMD / 25 MHz XO (Standard) HCMOS Oscillator 1.6V ~ 3.6V Enable/Disable 4-SMD, No Lead
Datasheet
ECS-2520MV-250-CN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer ECS Inc.
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.6V ~ 3.6V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number XC2752TR,XC2752CT,XC2752DKR
Standard Package 3,000
Win Source Part Number 1328757-ECS-2520MV-250-CN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-2520MV-250-CN-TR CAD Model

Description

The ECS Inc. 1328757-ECS-2520MV-250-CN-TR is a standard XO oscillator with a frequency of 25 MHz.

  • Frequency: 25 MHz
  • Frequency Stability: ±25ppm
  • Current Supply: 7mA
  • Packaging: Reel-TR
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package/Case: 4-SMD, No Lead
  • ROHS3 Compliant: Yes
