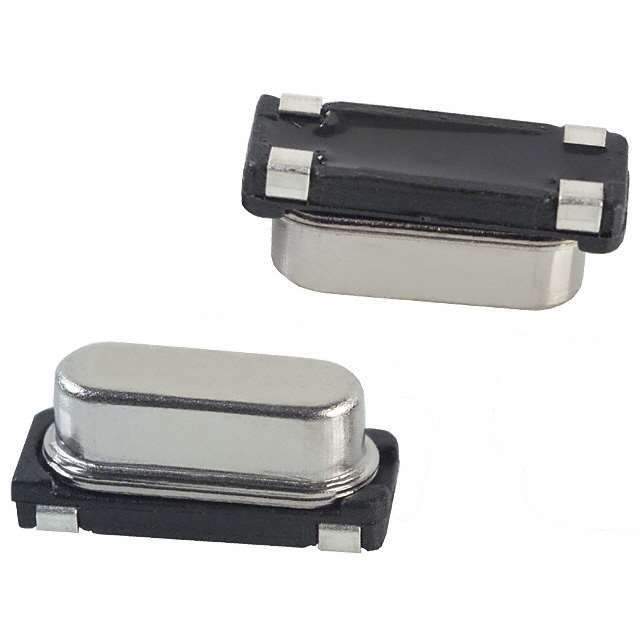

ECS-49-20-28A-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-49-20-28A-TR

Part No ECS-49-20-28A-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 4.9152MHZ 20PF SMD / 4.9152 MHz ±30ppm Crystal 20pF 200 Ohms HC-49/US
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series CSM-4A
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 4.9152 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.492" L x 0.191" W (12.50mm x 4.85mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Win Source Part Number 1340195-ECS-49-20-28A-TR
Ultra Librarian 3D Model Ultra Librarian ECS-49-20-28A-TR CAD Model

Description

The 1340195-ECS-49-20-28A-TR MHz crystal is a high-performance crystal oscillator that is designed for use in various electronic devices.

  • Series: CSM-4A
  • Frequency: 4.9152 MHz
  • Load Capacitance: 20pF
  • ESR: 200 Ohms
  • Operating Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package / Case: HC-49/US
  • Operating Temperature: -10°C to 70°C
  • RoHS Status: Non-Compliant
