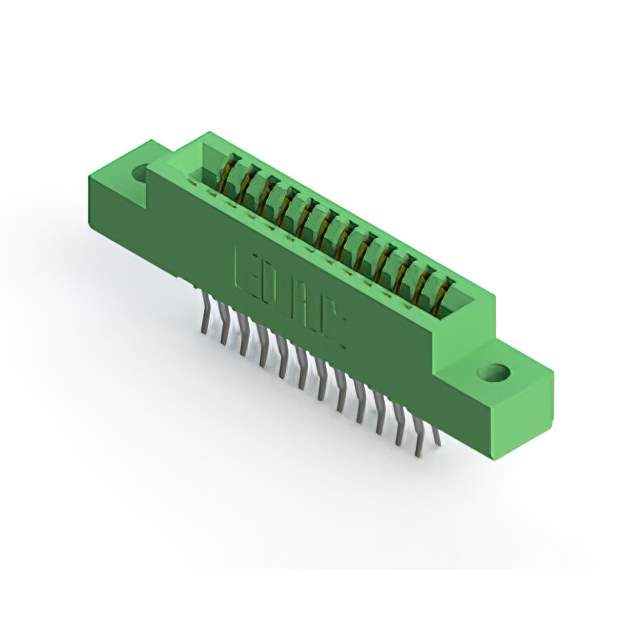

Part No 341-024-560-202
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 341 SERIES (.100" (2.54MM) CONTA / 24 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Datasheet
341-024-560-202 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 341
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 12
Number of Positions 24
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Features Card Extender
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Green
Flange Feature Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 341-024
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-341-024-560-202
Standard Package 25
Win Source Part Number 1151763-341-024-560-202
Ultra Librarian 3D Model Ultra Librarian 341-024-560-202 CAD Model

Description

The 1151763-341-024-560-202 is a female card edge connector manufactured by EDAC Inc.

  • Product: 1151763-341-024-560-202
  • Manufacturer: EDAC Inc.
  • Category: Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
  • Positions: 24
  • Pitch: 0.100" (2.54mm)
  • Color: Green
  • Contact Type: Semi-Bellows
  • Rows: Two
  • Termination: Two Rows
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Contact Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Gender: Female
  • Standard Package: 25
  • Card Type: Non-Specified Dual Edge
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Mounting Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Flange
  • Readout: Dual
  • Mounting Type: Board Edge, Straddle Mount
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99
