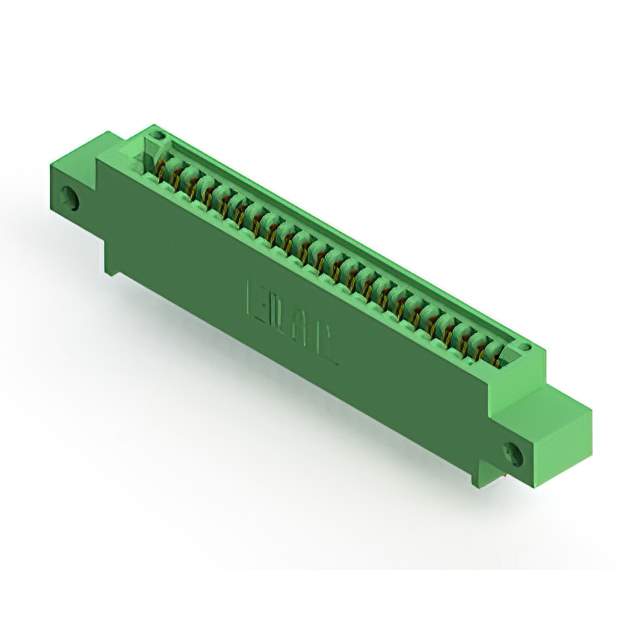

345-022-525-612 Real Image
Same model may have multiple batches, images only for reference.

345-022-525-612

Part No 345-022-525-612
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 345 SERIES (.100" (2.54MM) CONTA / 22 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
Datasheet
345-022-525-612 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 345
Package Bulk
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 22
Number of Positions 22
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.100" (2.54mm)
Read Out Single
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 345-022
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-345-022-525-612
Standard Package 25
Win Source Part Number 1038962-345-022-525-612
Ultra Librarian 3D Model Ultra Librarian 345-022-525-612 CAD Model

Description

This is a female cantilever card edge connector from the 345 series with 22 positions and a pitch of 0.100 inches.

  • Series: 345
  • Gender: Female
  • Contact Type: Cantilever
  • Positions: 22
  • Pitch: 0.100 inches
  • Color: Green
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Contact Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Card Type: Non-Specified Single Edge (22 Positions/Bay/Row)
  • Card Thickness: 0.054 inches to 0.070 inches
  • Opening: Side Mount
  • Flange Feature: Unthreaded, 0.128 inches (3.25mm) Diameter
  • Readout: Single
  • Mounting Type: Through Hole
  • Operating Temperature Range: -40°C to 105°C
  • Package: Bulk
  • Standard Package: 25
