Same model may have multiple batches, images only for reference.

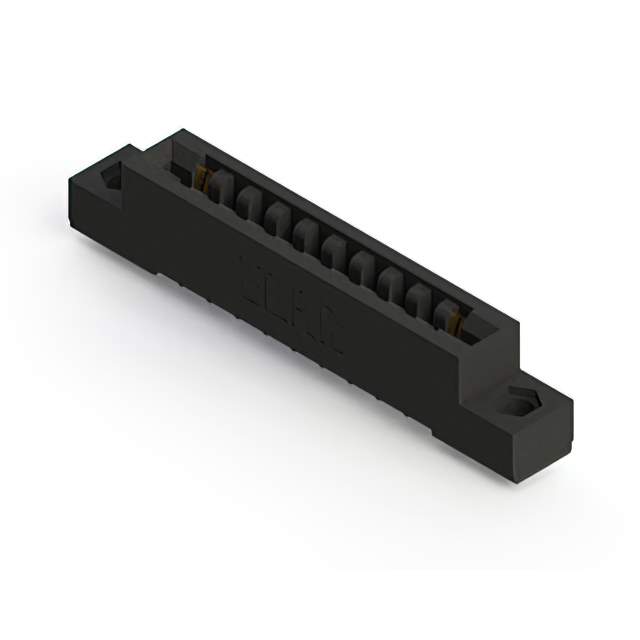

357-010-505-104 Real Image
Same model may have multiple batches, images only for reference.

357-010-505-104

Part No 357-010-505-104
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE SGL FMALE 10POS 0.156 / 10 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
Datasheet
357-010-505-104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 357
Package Bulk
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 10
Number of Positions 10
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.156" (3.96mm)
Read Out Single
Mounting Type Through Hole
Termination Solder Eyelet(s)
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Black
Flange Feature Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 357-010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 25
Win Source Part Number 1034070-357-010-505-104
Ultra Librarian 3D Model Ultra Librarian 357-010-505-104 CAD Model

Description

The 357-010-505-104 is a female card edge connector manufactured by EDAC Inc.

  • Manufacturer: EDAC Inc.
  • Package: 25
  • Termination: Solder Eyelet(s)
  • Contact Type: Semi-Bellows
  • Pitch: 0.156" (3.96mm)
  • Color: Black
  • Card Type: Non-Specified Single Edge
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
