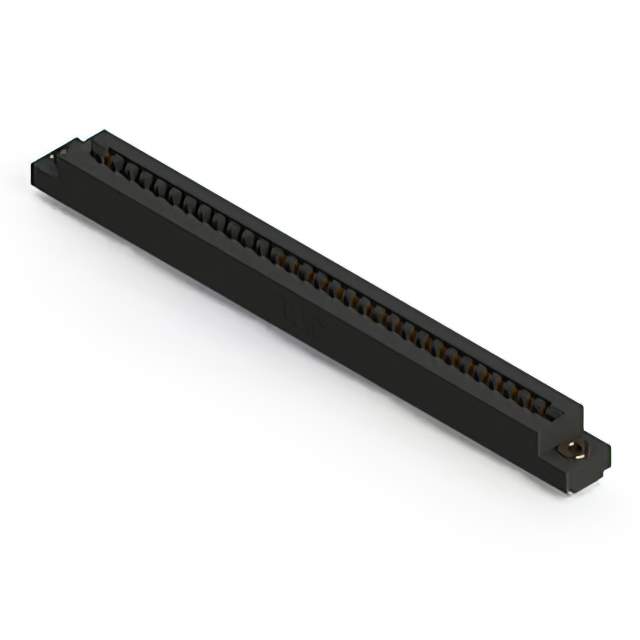

357-031-505-103 Real Image
Same model may have multiple batches, images only for reference.

357-031-505-103

Part No 357-031-505-103
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 357 SERIES (.156" (3.96MM) CONTA / 31 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
Datasheet
357-031-505-103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 357
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 31
Number of Positions 31
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.156" (3.96mm)
Read Out Single
Mounting Type Through Hole
Termination Solder Eyelet(s)
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Black
Flange Feature Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 357-031
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-357-031-505-103
Standard Package 25
Win Source Part Number 1039025-357-031-505-103
Ultra Librarian 3D Model Ultra Librarian 357-031-505-103 CAD Model

Description

The 1039025-357-031-505-103 is a card edge connector from the 357 series.

  • Series: 357
  • Positions: 31
  • Pitch: 0.156" (3.96mm)
  • Contact Type: Semi Bellows
  • Termination: Solder Eyelet(s)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Mounting: Through Hole
  • Temperature Range: -40°C to 105°C
  • Applications: computer peripherals, communication equipment, and industrial control systems
