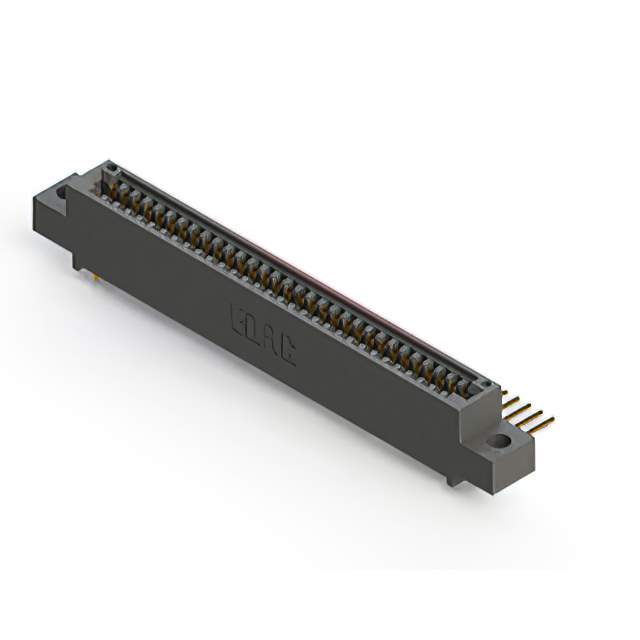

395-062-558-504 Real Image
Same model may have multiple batches, images only for reference.

395-062-558-504

Part No 395-062-558-504
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 62POS 0.100 / 62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Datasheet
395-062-558-504 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 395
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 31
Number of Positions 62
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Flange Feature Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 395-062
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-395-062-558-504
Standard Package 25
Win Source Part Number 1041211-395-062-558-504
Ultra Librarian 3D Model Ultra Librarian 395-062-558-504 CAD Model

Description

The EDAC Inc. 395 series card edge connector is a dual-edge non-specified component with a pitch of 0.100 inches and 62 positions.

  • Connector Gender: Female
  • Contact Type: Cantilever
  • Number of Rows: Two
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 10.0μin (0.25μm)
  • Contact Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Color: Black
  • Card Thickness: 0.054 inches to 0.070 inches
  • Flange Feature: Top Mount Opening, Unthreaded with a diameter of 0.156 inches
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99
  • REACH: Unaffected
