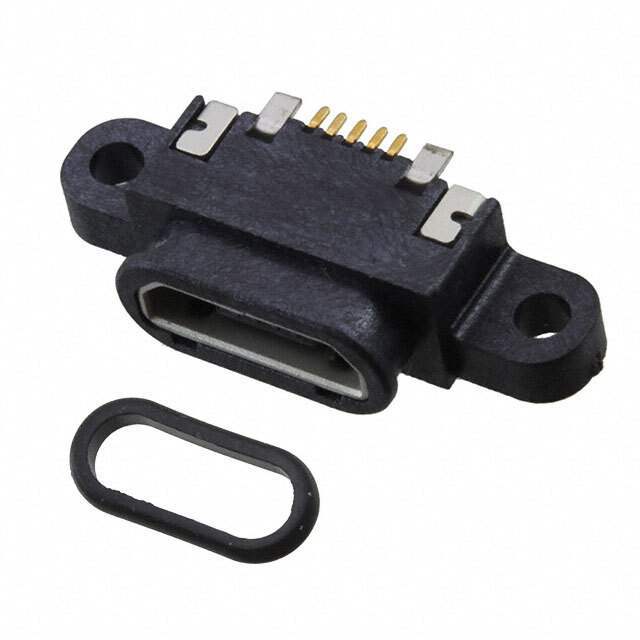

690-W05-290-483EDAC Inc.
Same model may have multiple batches, images only for reference.

690-W05-290-483

Part No 690-W05-290-483
Manufacturer EDAC Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB1.0 MICRO B SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208727-690-W05-290-483
Manufacturer EDAC Inc.
Category Connectors, Interconnects -USB, DVI, HDMI Connectors -USB, DVI, HDMI Connector Assemblies
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type USB - micro B
Gender Receptacle
Mounting Type Surface Mount, Right Angle
Mounting Feature Flange, Horizontal
Termination Solder
Features Solder Retention
Ultra Librarian 3D Model Ultra Librarian 690-W05-290-483 CAD Model

Description

CONN RCPT USB1.0 MICRO B SMD R/A
