Same model may have multiple batches, images only for reference.

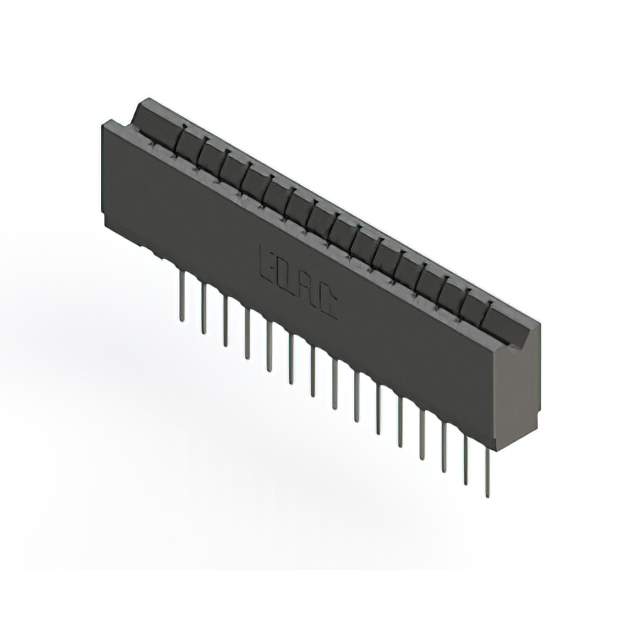

737-015-540-106 Real Image
Same model may have multiple batches, images only for reference.

737-015-540-106

Part No 737-015-540-106
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 737 SERIES ULTRA-MATE CARD EDGE / 15 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
Datasheet
737-015-540-106 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 737
Package Bulk
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 15
Number of Positions 15
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.156" (3.96mm)
Read Out Single
Mounting Type Through Hole
Termination Press-Fit, Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 737-015
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-737-015-540-106
Standard Package 25
Win Source Part Number 1201738-737-015-540-106
Ultra Librarian 3D Model Ultra Librarian 737-015-540-106 CAD Model

Description

The 737-015-540-106 is a card edge connector manufactured by EDAC Inc.

  • Manufacturer: EDAC Inc.
  • Product Name: 737-015-540-106
  • Series: 737
  • Connector Type: Female
  • Positions: 15
  • Pitch: 0.156" (3.96mm)
  • RoHS Compliant: Yes
  • Packaging: Bulk
  • Standard Package: 25
