Same model may have multiple batches, images only for reference.

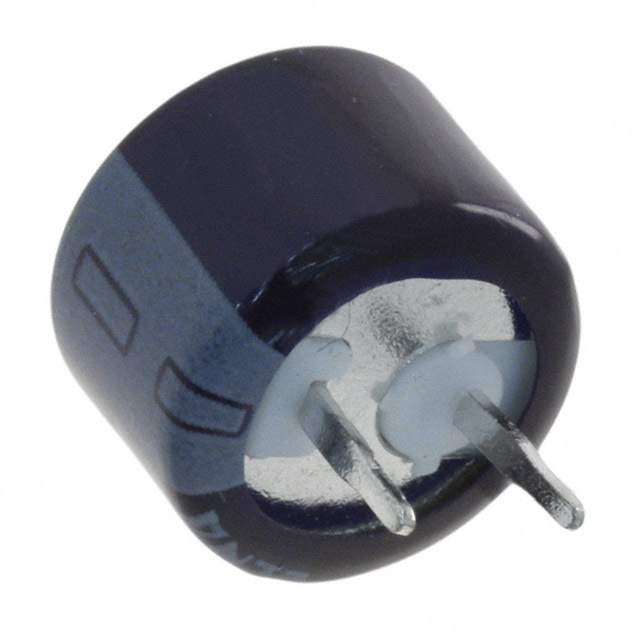

RSCH12245R5G09014T Real Image
Same model may have multiple batches, images only for reference.

RSCH12245R5G09014T

Part No RSCH12245R5G09014T
Manufacturer Elna America
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 220MF -20% +80% 5.5V T/H / 220 mF (EDLC) Supercapacitor 5.5 V Radial, Can 120Ohm 1000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Elna America
Series DH
Package Bulk
Capacitance 220 mF
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 120Ohm
Lifetime @ Temp. 1000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.531" Dia (13.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Temperature Range - Operating -25°C ~ 85°C
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1338317-RSCH12245R5G09014T
Ultra Librarian 3D Model Ultra Librarian RSCH12245R5G09014T CAD Model

Description

The Elna America 1338317-RSCH12245R5G09014T is a capacitor that is part of the DH series.

  • Manufacturer: Elna America
  • Capacitance: 220 mF
  • Voltage Rating: 5.5 V
  • Mounting Type: Through-Hole
  • Standard Package: 200
  • Package/Case: Radial Can
  • Tolerance: -20%, +80%
  • ESR: 120Ohm
  • Application: Electric Double Layer Capacitors (EDLC) and Supercapacitors
  • Lifetime: 1000 Hrs @ 85°C
  • Operating Temperature: -25°C ~ 85°C
