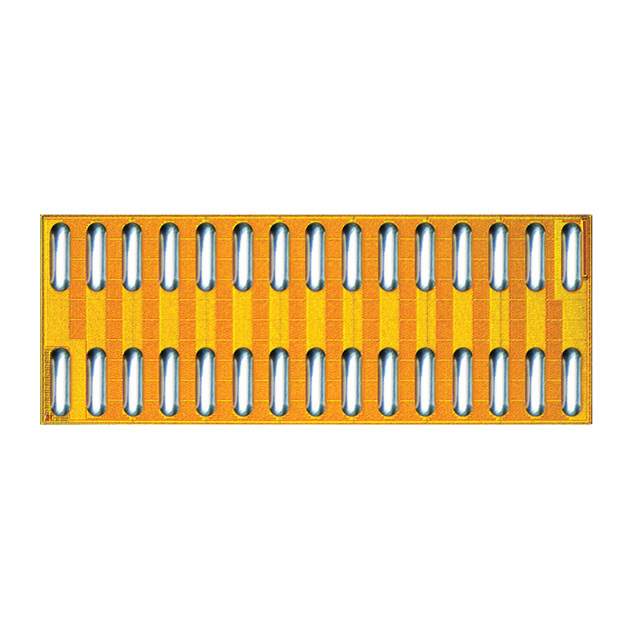

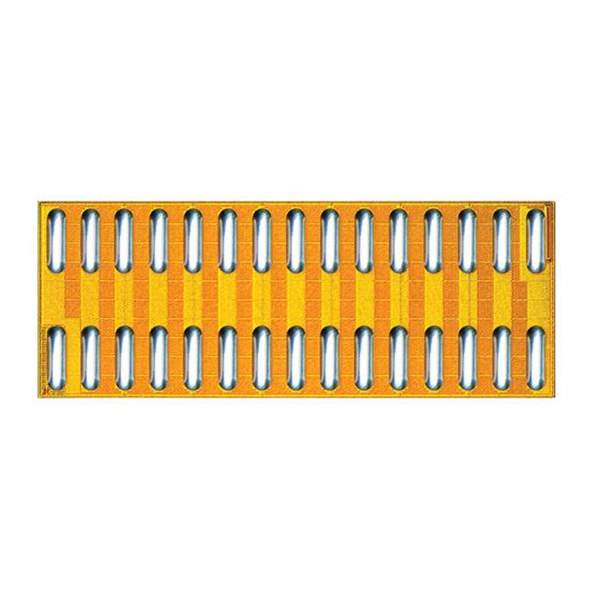

Same model may have multiple batches, images only for reference.

EPC2024

Name: EPC2024
Brand: EPC
SKU: 1382020
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EPC2024
Manufacturer	EPC
Catalog	Transistors - FETs, MOSFETs - RF
Description	GANFET NCH 40V 60A DIE / N-Channel 40 V 90A (Ta) Surface Mount Die
Datasheet	EPC2024 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr	EPC
Series	eGaN®
Package	Tape & Reel
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	90A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	1.5mOhm @ 37A, 5V
Vgs(th) (Max) @ Id	2.5V @ 19mA
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	2100 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	-
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die
Base Product Number	EPC20
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0040
Standard Package	500 pcs
Win Source Part Number	1382020-EPC2024
Ultra Librarian 3D Model	Ultra Librarian EPC2024 CAD Model

Description

The 1382020-EPC2024 is a single FET (Field-Effect Transistor) manufactured by EPC.

Series: eGaN
Technology: GaNFET (Gallium Nitride)
Packaging: Tape and Reel
Standard Package: 500 pieces
FET Type: N-Channel
Drain to Source Voltage (Vdss): 40V
Continuous Drain Current (Id) @ 25°C: 90A
On-Resistance (Rds On) Max: 1.5mOhm @ 37A and 5V gate-source voltage (Vgs)
Gate-Source Threshold Voltage (Vgs(th)): 2.5V @ 19mA
ECCN: EAR99
REACH Affected: No
HTSUS Code: 8541.29.0040
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Base Product Number: EPC20
Maximum Drive Voltage: 5V
