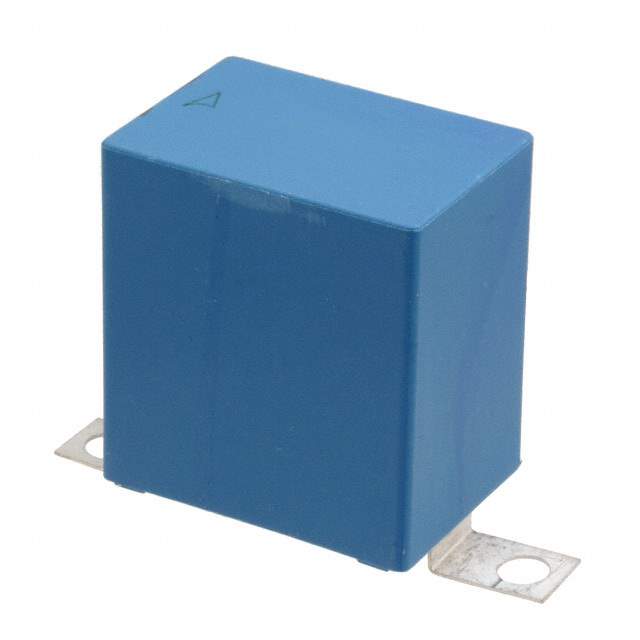

B32656S2104J564 Real Image
Same model may have multiple batches, images only for reference.

B32656S2104J564

Part No B32656S2104J564
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.1UF 5% 2KVDC SCREW / Cap Film 0.1uF 2000V PP 5% (42 X 14 X 25mm) Screw Mount Plastic Can 0.02 Ohm 100°C Automotive Bulk
Datasheet
B32656S2104J564 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B32656S
Packaging Bulk
Capacitance 0.1μF
Tolerance ±5%
Voltage Rating - AC 800V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 20 mOhm
Operating Temperature Range -55°C ~ 100°C
Mounting Chassis Mount
Package Rectangular Box
Termination Screw Terminals
Lead Spacing 1.476" (37.50mm)
Applications Snubber
Features Low ESL
Win Source Part Number 793543-B32656S2104J564
Popularity Medium
Supply and Demand Status Limited
Family Name B32656S
Introduction Date September 05, 2005
ECCN EAR99
Country of Origin Brazil
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian B32656S2104J564 CAD Model

Description

The B32656S2104J564 is a capacitor module manufactured by EPCOS (TDK).

  • Capacitance: 0.1μF
  • Tolerance: ±5%
  • Features: Low ESL
  • Mounting: Chassis
  • Voltage Rating: 800V AC, 2000V DC
  • ESR: 20 mOhm
  • Shape: Rectangular Box
  • Dielectric Material: Polypropylene (PP), Metallized
  • Lead Spacing: 1.476" (37.50mm)
  • ECCN: EAR99
  • Popularity: Medium
  • Supply/Demand: Limited
