Product Overview

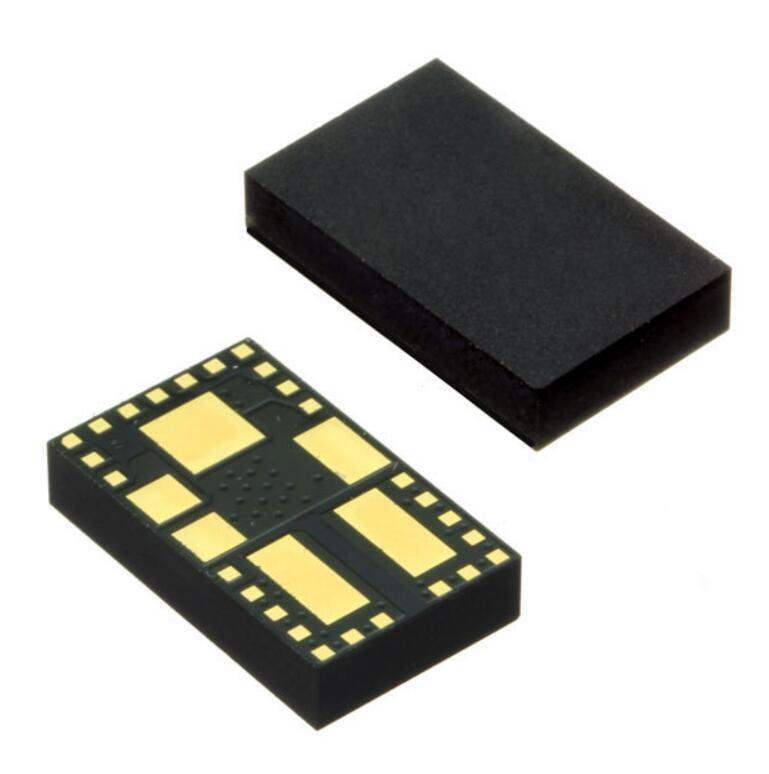

The MAXM17514ALI+T from Analog Devices Inc. is a high-performance, easy-to-use, integrated step-down power module that delivers up to 3.5A of continuous output current. It operates over a wide input voltage range of 4.5V to 42V, which makes it suitable for a variety of applications including industrial, automotive, communications, and consumer electronics.

Key Features

• Wide Input Voltage Range: The module supports a broad input voltage range from 4.5V to 42V, making it adaptable to various supply levels.
• High Output Current: It is capable of delivering up to 3.5A of continuous output current, ensuring sufficient power for demanding applications.
• Integrated Inductor: The MAXM17514ALI+T includes an integrated inductor which simplifies design and reduces external component count.
• High Efficiency: Designed for high efficiency, the power module helps in reducing power loss and heat generation in the system.
• Compact Footprint: Its small size and surface-mount package allow for a compact design, saving valuable board space.
• Adjustable Output Voltage: The output voltage is adjustable, providing design flexibility to meet specific application requirements.
• Thermal Protection: The device includes thermal shutdown protection to safeguard against overheating and potential damage.
• Overcurrent Protection: Built-in overcurrent protection ensures the longevity and reliability of both the module and the application it powers.

Applications

The versatility of the MAXM17514ALI+T makes it an ideal choice for a wide range of applications. It is particularly well-suited for use in:

• Industrial Control Systems
• Automotive Infotainment and Telematics
• Telecommunications Equipment
• Point-of-Load Applications
• Portable Devices

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and the MAXM17514ALI+T is no exception. The module is designed to meet the rigorous standards required for industrial and automotive applications, ensuring both performance and reliability.

With its combination of features, the MAXM17514ALI+T power module from Analog Devices Inc. represents a robust power management solution that can streamline the design process and enhance the performance of a wide array of electronic systems.
