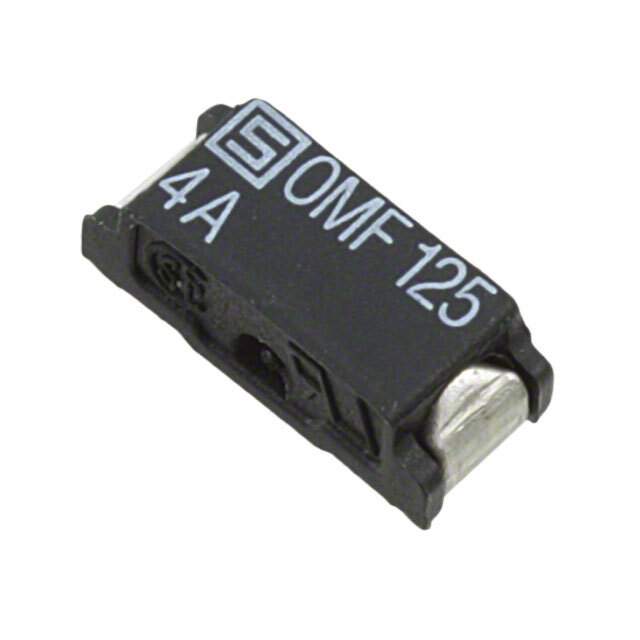

3404.0020.22 Real Image
Same model may have multiple batches, images only for reference.

3404.0020.22

Part No 3404.0020.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 8A 125VAC/VDC 2SMD
Datasheet
3404.0020.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 8A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A
Nominal Melting - I2t 20
Approvals cURus
Temperature Range - Operating -55°C to 125°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Win Source Part Number 197666-3404.0020.22
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3404.0020.22 CAD Model

Description

Product Overview

The 3404.0020.22 is crafted for versatility and durability, suitable for a wide array of electronic applications.

Features and Benefits

  • Durable Construction: Built to withstand rough operational environments.
  • Flexible Design: Easily adaptable to complement different system designs.
  • Optimal Performance: Ensures consistent functionality across various conditions.

Applications

  • Telecommunication Equipment
  • Embedded Systems
  • Lighting Solutions
  • Wearable Technology

The 3404.0020.22 is a top choice for projects needing a robust and adaptable component solution.
