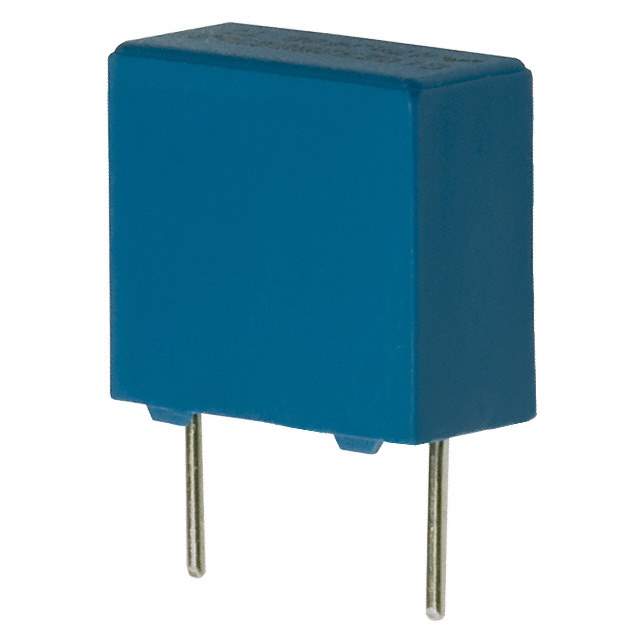

B32671L0822J000 Real Image
Same model may have multiple batches, images only for reference.

B32671L0822J000

Part No B32671L0822J000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 8200PF 5% 1KVDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Capacitance 8200pF
Tolerance ±5%
Voltage Rating - AC 500V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Style Through Hole
Manufacturer Package Radial
Parts Dimension 0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Maximum) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications High Frequency, Switching; High Pulse, DV/DT
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 758463-B32671L0822J000
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32671L0822J000 CAD Model

Description

The EPCOS (TDK) capacitor with part number 758463-B32671L0822J000 is a bulk through-hole mounting style capacitor designed for high frequency, switching and high pulse DV/DT applications.

  • Capacitance: 8200pF
  • Tolerance: ±5%
  • Voltage Rating (AC): 500V
  • Voltage Rating (DC): 1000V (1kV)
  • Lead Spacing: 0.394" (10.00mm)
  • Dielectric Material: polypropylene (PP), metallized
  • Temperature Range: -55°C ~ 110°C
  • Manufacturer Package: radial
  • Height Seated (Maximum): 0.472" (12.00mm)
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.512" L x 0.236" W (13.00mm x 6.00mm)
