Same model may have multiple batches, images only for reference.

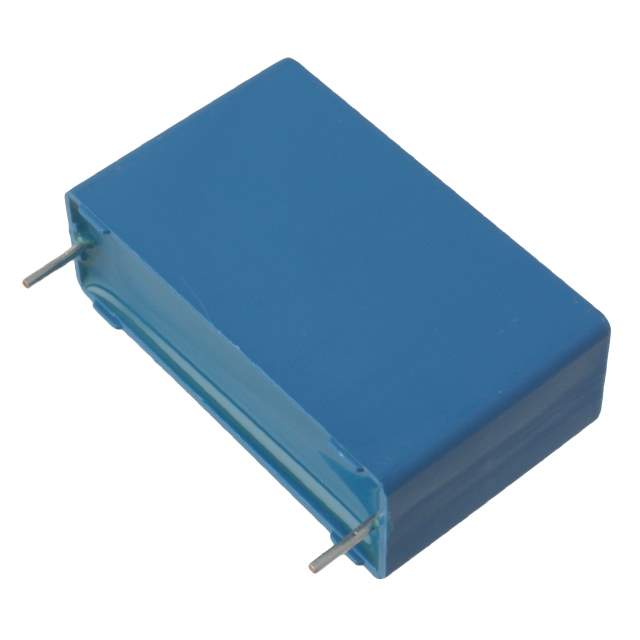

B32672L1103J000 Real Image
Same model may have multiple batches, images only for reference.

B32672L1103J000

Part No B32672L1103J000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 1.6KVDC RAD / 10000 pF Film Capacitor 600V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3267*L* - MKP High Current
Package Bulk
Capacitance 10000 pF
Tolerance ±5%
Voltage Rating - AC 600V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.236" W (18.00mm x 6.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching; High Pulse, DV/DT
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names B32672L1103JZ1,495-3214,B32672L1103J
Standard Package 1,000
Win Source Part Number 1114396-B32672L1103J000
Ultra Librarian 3D Model Ultra Librarian B32672L1103J000 CAD Model

Description

The EPCOS (TDK) B32672L1103J000 is a radial through-hole film capacitor.

  • Capacitance: 10000pF
  • Tolerance: ±5%
  • Voltage Rating: 600VAC and 1600VDC
  • Dielectric Material: Polypropylene (PP), Metallized
  • Lead Spacing: 0.591" (15.00mm)
  • Height: 0.433" (11.00mm)
  • Application: High-Frequency, Switching, and High-Pulse DV/DT
