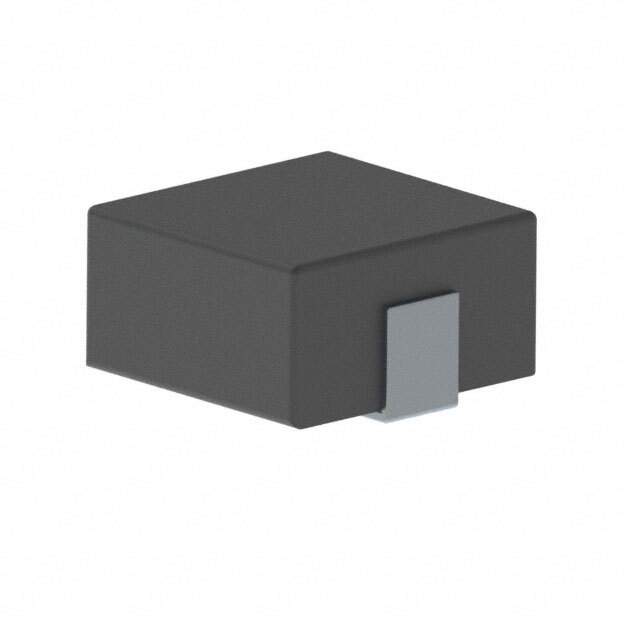

HCM1A0503-2R2-R Real Image
Same model may have multiple batches, images only for reference.

HCM1A0503-2R2-R

Part No HCM1A0503-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 4.5A 25MOHM SMD / 2.2 µH Shielded Inductor 4.5 A 25mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series HCM1A
Package Tape & Reel
Material - Core Iron Powder
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 6.4A
Shielding Shielded
DC Resistance (DCR) 25mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names HCM1A0503-2R2,283-4740-1,283-4740-2,283-4740-6
Standard Package 2,000
Win Source Part Number 985027-HCM1A0503-2R2-R
Ultra Librarian 3D Model Ultra Librarian HCM1A0503-2R2-R CAD Model

Description

The Eaton HCM1A0503-2R2-R is a fixed inductor that has an inductance of 2.2 µH.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Maximum DC Resistance: 25mOhm
  • Shielded: Yes
  • Package: Nonstandard
  • Series: HCM1A
  • AEC-Q200: Yes
  • Packaging: Tape & Reel
  • Units per Reel: 2000
  • Current Rating: 4.5 A
  • Saturation Current: 6.4A
