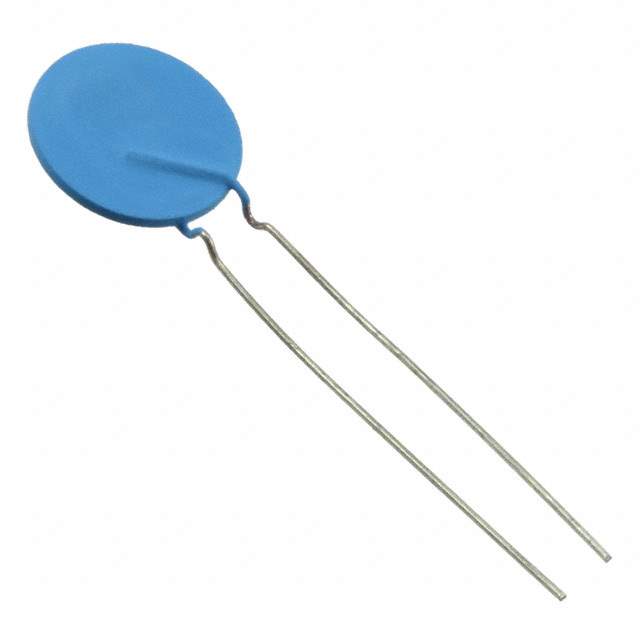

B59945C0120A070

Part No B59945C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 1.3A 24V RAD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 30V
Current - Max 8A
Current - Hold (Ih) (Max) 1.3A
Current - Trip (It) 2.6A
Resistance - 25°C (Typ) 450 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting Through Hole
Dimension 0.689" Dia x 0.138" W (17.50mm x 3.50mm)
Height - Seated (Max) 0.827" (21.00mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199981-B59945C0120A070
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B59945C0120A070 CAD Model

Description

The B59945C0120A070 offers advanced features tailored for high-temperature environments, ensuring devices remain functional and protected from thermal risks.

Features and Benefits

  • Advanced Thermal Protection: Shields electronic circuits from extreme temperatures.
  • Versatile Applications: Broad usability across various devices.
  • Efficient Design: Allows for seamless integration with existing systems.

Applications

  • Consumer electronics with stringent temperature requirements
  • Automotive electronics for efficient temperature management
  • Industrial control devices

The B59945C0120A070 is a reliable component for applications that prioritize safety and performance under varying thermal conditions.
