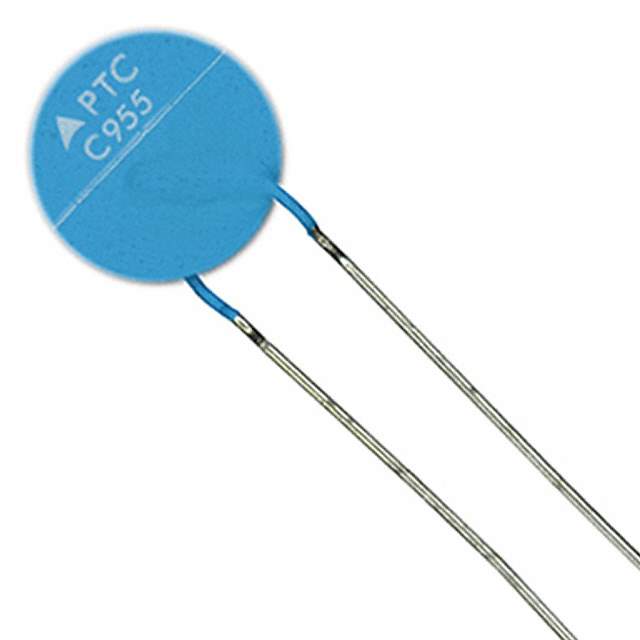

B59955C120A70

Part No B59955C120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 850MA 24V RAD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 30V
Current - Max 5.5A
Current - Hold (Ih) (Max) 850mA
Current - Trip (It) 1.7A
Resistance - 25°C (Typ) 800 mOhm
Temperature Range - Operating -40°C to 125°C
Ratings AEC-Q200
Mounting Through Hole
Dimension 0.532" Dia x 0.138" W (13.50mm x 3.50mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 010679-B59955C120A70
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B59955C120A70 CAD Model

Description

Overview

The B59955C120A70 thermistor is a precise and robust component designed for temperature measurement and regulation. Perfect for situations requiring high accuracy and stability.

Applications

  • Consumer electronics
  • Green energy systems
  • Battery management systems
  • Office equipment

Features and Benefits

  • Exceptional accuracy with minimal error margin
  • Robust performance in various environmental conditions
  • Quick temperature response for dynamic applications
  • Energy-efficient design

Additional Details

The B59955C120A70 is engineered to meet the demands of modern technology, ensuring excellent thermal control and management. Whether implemented in residential or industrial settings, it guarantees consistent performance.
