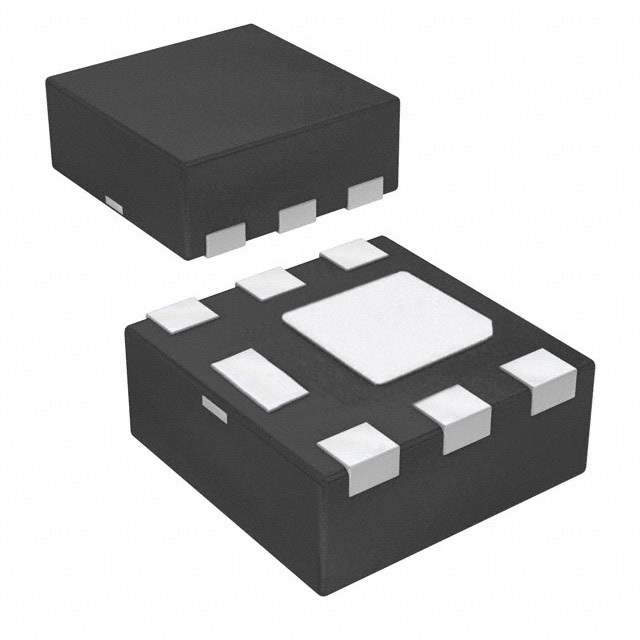

FDMA420NZ

Name: FDMA420NZ
Brand: Fairchild/ON Semiconductor
SKU: 129318
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FDMA420NZ
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 20V 5.7A MICROFET
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	5.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Gate-Source Threshold Voltage	1.5V @ 250μA
Max Gate Charge	12nC @ 4.5V
Max Input Capacitance	935pF @ 10V
Maximum Gate-Source Voltage	±12V
Power Dissipation (Max)	2.4W (Ta)
Maximum Rds On at Id,Vgs	30 mOhm @ 5.7A, 4.5V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	6-MicroFET (2x2)
Dimension	6-WDFN Exposed Pad
Win Source Part Number	016009-FDMA420NZ
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FDMA420NZ CAD Model

Alternative Products

Description

The FDMA420NZ is an N-channel MOSFET transistor.

Power Dissipation: 2.4W (Ta)
Drain-Source Breakdown Voltage: 20V
Continuous Drain Current (25°C): 5.7A (Ta)
Gate-Source Threshold Voltage: 1.5V @ 250μA
Gate Charge (Max): 12nC @ 4.5V
Input Capacitance (Max): 935pF @ 10V
Rds On (Max) @ Id, Vgs: 30 mOhm @ 5.7A, 4.5V
Package: 6-MicroFET (2x2) with exposed pad (6-WDFN)
Drive Voltage: 2.5V, 4.5V
Operating Temperature: -55°C to 150°C (TJ)
