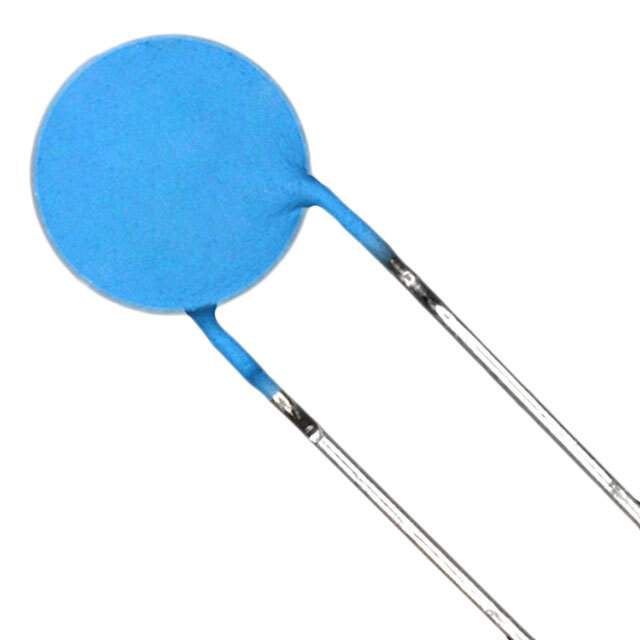

B59970C120A70

Part No B59970C120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 150MA 63V RAD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 80V
Current - Max 3A
Current - Hold (Ih) (Max) 150mA
Current - Trip (It) 300mA
Resistance - 25°C (Typ) 9.4 Ohm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Dimension 0.354" Dia x 0.138" W (9.00mm x 3.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199989-B59970C120A70
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B59970C120A70 CAD Model

Description

Product Overview of B59970C120A70

The B59970C120A70 represents a fusion of innovation and precision, crafted to support a wide range of cutting-edge applications with its superior technical capabilities.

Applications and Projects

  • Smart Grid Technologies
  • Industrial Control Systems
  • Security and Surveillance Systems
  • Wearable Technology
  • Energy Storage Solutions

Features and Benefits

  • Advanced Functionality: Elevates system performance with intelligent design.
  • Reliable Performance: Maintains stability under challenging conditions.
  • Efficient Integration: Streamlines setup and usage in complex systems.
  • Cost-Effective: Provides significant value without sacrificing quality.

The B59970C120A70 is an excellent addition to any tech-forward project, offering both reliability and cutting-edge performance to meet the needs of discerning engineers and developers.
