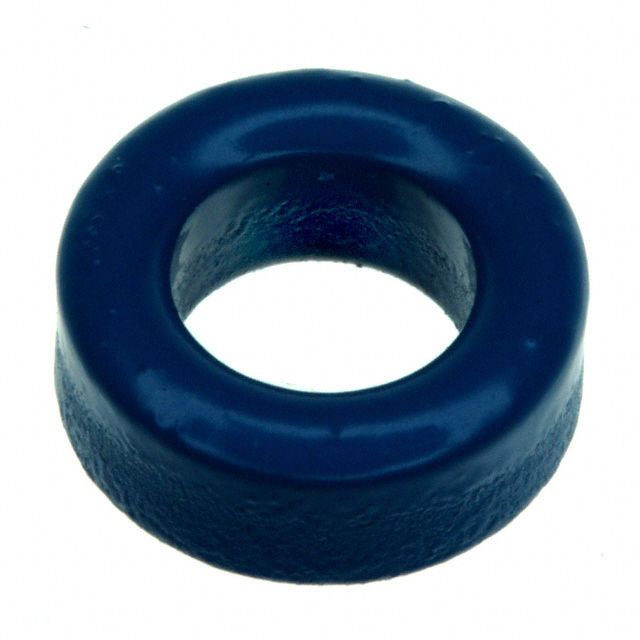

B64290L0038X038 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290L0038X038

Part No B64290L0038X038
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Epoxy T38 Ferrite Core Toroid Type Length Width 0.425" (10.80mm) Diameter 0.187" (4.75mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series TX10/6/4
Packaging Bulk
Core Type Toroid
Material T38
Diameter 0.425" (10.80mm)
Inductance Factor (Al) 4.09 µH
Tolerance ±30%
Gap Ungapped
Initial Permeability (µi) 10000
Core Factor (ΣI/A) mm⁻¹ 3.07
Effective Length (le) mm 24.07
Effective Area (Ae) mm2 7.83
Effective Magnetic Volume (Ve) mm3 188.0
Finish Epoxy
Height 0.187" (4.75mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489342-B64290L0038X038
Ultra Librarian 3D Model Ultra Librarian B64290L0038X038 CAD Model
