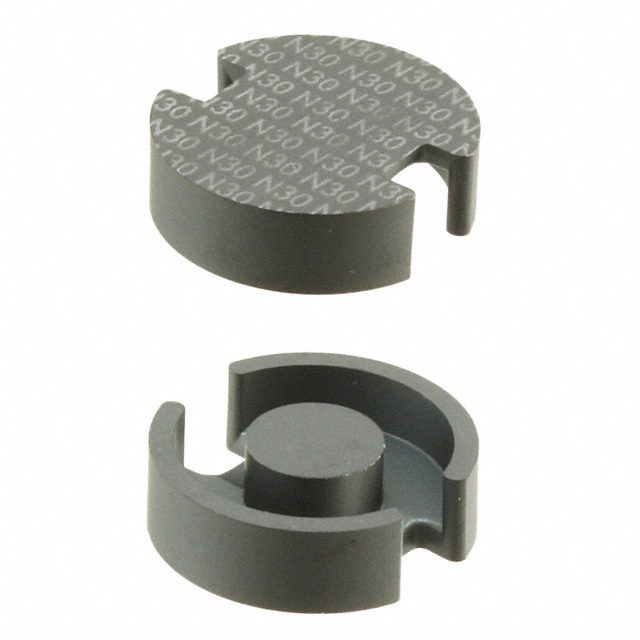

B65651W0000R030 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65651W0000R030

Part No B65651W0000R030
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N30 Ferrite Core P (Pot Core) Type Length Width 0.724" (18.40mm) Diameter 0.209" (5.30mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series P18/11
Packaging Box
Core Type P (Pot Core)
Supplier Device Package P 18 x 11
Material N30
Diameter 0.724" (18.40mm)
Inductance Factor (Al) 5.9 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 2680.0
Initial Permeability (µi) 4300
Core Factor (ΣI/A) mm⁻¹ 0.57
Effective Length (le) mm 26.6
Effective Area (Ae) mm2 46.7
Minimum Core Cross Section (Amin) mm2 33.9
Effective Magnetic Volume (Ve) mm3 1242.0
Finish Uncoated
Height 0.209" (5.30mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489698-B65651W0000R030
Ultra Librarian 3D Model Ultra Librarian B65651W0000R030 CAD Model
