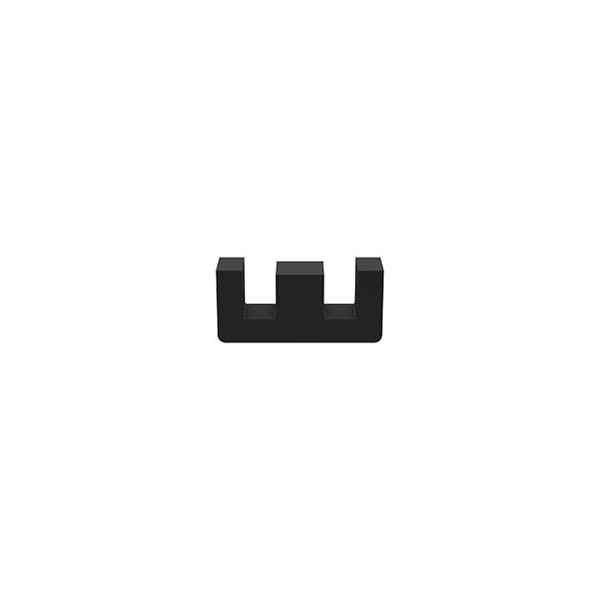

B66233G0000X197 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B66233G0000X197

Part No B66233G0000X197
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N97 Ferrite Core E Type 1.260" (32.00mm) Length 0.433" (11.00mm) Width Diameter 0.646" (16.40mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series E32/16/11
Packaging Box
Core Type E
Supplier Device Package E 32 x 16 x 11
Material N97
Inductance Factor (Al) 3 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 1820.0
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 0.76
Effective Length (le) mm 74.0
Effective Area (Ae) mm2 97.0
Minimum Core Cross Section (Amin) mm2 95.0
Effective Magnetic Volume (Ve) mm3 7187.0
Finish Uncoated
Height 0.646" (16.40mm)
Length 1.260" (32.00mm)
Width 0.433" (11.00mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1490414-B66233G0000X197
Ultra Librarian 3D Model Ultra Librarian B66233G0000X197 CAD Model
