Same model may have multiple batches, images only for reference.

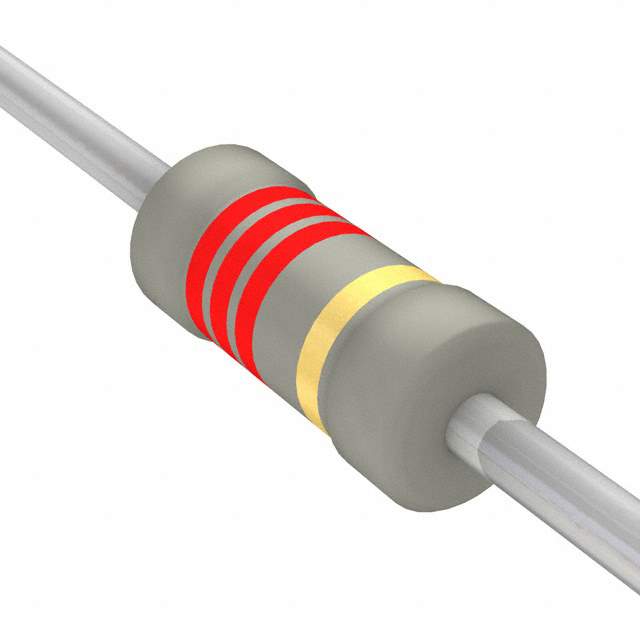

B78108S1225J009 Real Image
Same model may have multiple batches, images only for reference.

B78108S1225J009

Part No B78108S1225J009
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 2.2MH 80MA 34.7 OHM TH / 2.2 mH Unshielded Drum Core, Wirewound Inductor 80 mA 34.7Ohm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer EPCOS - TDK Electronics
Packaging Tape & Box (TB)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 mH
Tolerance ±5%
Current Rating (Amps) 80 mA
Shielding Unshielded
DC Resistance (DCR) 34.7Ohm Max
Q @ Freq 40 @ 252kHz
Frequency - Self Resonant 1.1MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 252 kHz
Mounting Through Hole
Case / Package Axial
Size / Dimension 0.157" Dia x 0.362" L (4.00mm x 9.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number B78108S1225J 9,B78108S1225J 9,B78108S1225J9-ND,B78108S1225J9
Standard Package 5,000
Win Source Part Number 1327705-B78108S1225J009
Ultra Librarian 3D Model Ultra Librarian B78108S1225J009 CAD Model

Description

The EPCOS - TDK Electronics B78108S1225J009 is a drum core, wirewound inductor that is unshielded and has a tolerance of ±5%.

  • Inductance: 2.2 mH
  • Q @ Freq: 40 @ 252 kHz
  • Frequency - Self Resonant: 1.1MHz
  • DC Resistance (DCR): 34.7Ohm Max
  • Temperature Range: -55°C ~ 125°C
  • Mounting: Axial
  • Current Rating: 80 mA
  • Inductance Frequency Test: 252 kHz
  • REACH: Affected
  • RoHS3 Compliant: Yes
