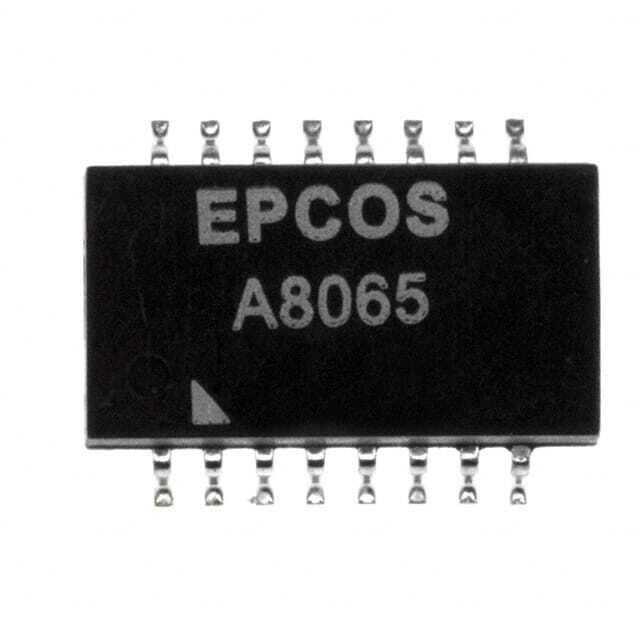

The B78476A8065A003 is a pulse transformer manufactured by EPCOS (TDK). It is designed for signal and data transmission, providing galvanic isolation and impedance matching in various electronic circuits. Pulse transformers are crucial components in applications such as isolated gate drivers, communication interfaces, and power supplies.

Applications

• Isolated gate drivers for IGBTs and MOSFETs
• Communication interfaces such as CAN, RS-485, and Ethernet
• Flyback converters in power supplies
• Triggering thyristors and triacs
• Signal isolation in medical equipment

Features

• Galvanic Isolation: Provides high voltage isolation between primary and secondary windings.
• Turns Ratio: Specific turns ratio for impedance matching and voltage transformation.
• Compact Design: Small footprint for space-constrained applications.
• High Efficiency: Designed for efficient pulse transmission with minimal signal distortion.
• RoHS Compliant: Compliant with RoHS environmental regulations.

Benefits

• Enhanced Safety: Galvanic isolation ensures safety by preventing electrical shock hazards.
• Optimized Performance: Impedance matching improves signal integrity and reduces reflections.
• Space Savings: Compact design allows for high-density circuit layouts.
• Reliable Operation: High efficiency and robust design ensure reliable performance.
• Environmental Compliance: RoHS compliance contributes to environmentally friendly designs.

Additional Details

The B78476A8065A003 typically features a core material optimized for pulse applications, ensuring low core loss and high permeability. The insulation material is selected for high dielectric strength. Its operating temperature ranges from -40°C to +85°C, making it suitable for industrial environments. The transformer is designed for automated assembly using standard soldering techniques.

This pulse transformer offers a reliable and efficient solution for signal and data transmission while providing essential galvanic isolation. Its features make it ideal for use in industrial automation, power electronics, and communication systems.
