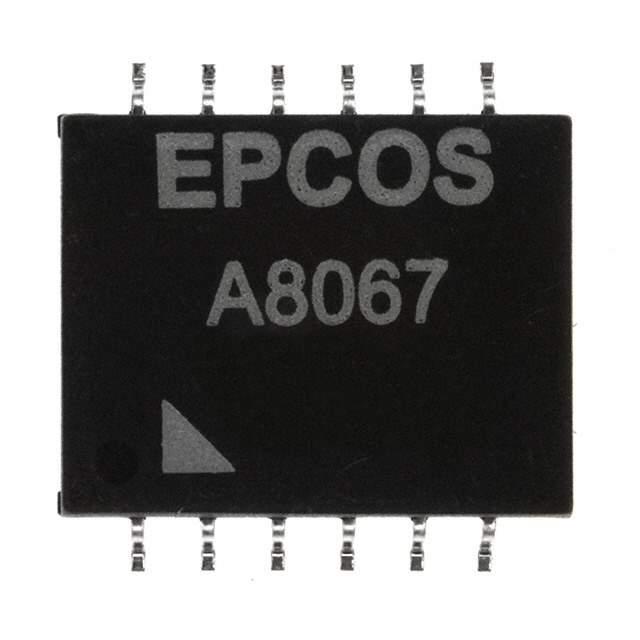

B78476A8067A003 Real Image
Same model may have multiple batches, images only for reference.

B78476A8067A003

Part No B78476A8067A003
Manufacturer EPCOS (TDK)
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT 350UH / 350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer EPCOS - TDK Electronics
Packaging Reel - TR
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Surface Mount
Size / Dimension 0.583" L x 0.461" W (14.81mm x 11.70mm)
Height - Seated (Max) 0.203" (5.15mm)
Temperature Range - Operating 0°C ~ 70°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 495-4018-2,495-4018-1,B78476A8067A 3,B78476A8067A3,B78476A8067A 3,495-4018-6
Standard Package 2,000
Win Source Part Number 1331480-B78476A8067A003
Ultra Librarian 3D Model Ultra Librarian B78476A8067A003 CAD Model

Description

The B78476A8067A003 is a LAN 10/100 Base-T pulse transformer manufactured by EPCOS - TDK Electronics.

  • Size/Dimension: 0.583" L x 0.461" W (14.81mm x 11.70mm)
  • Inductance: 350 µH
  • Maximum Seated Height: 0.203" (5.15mm)
  • Temperature Range: 0°C to 70°C
  • Package: Reel
  • Standard Package: 2,000
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
  • Mounting Type: Surface Mount
