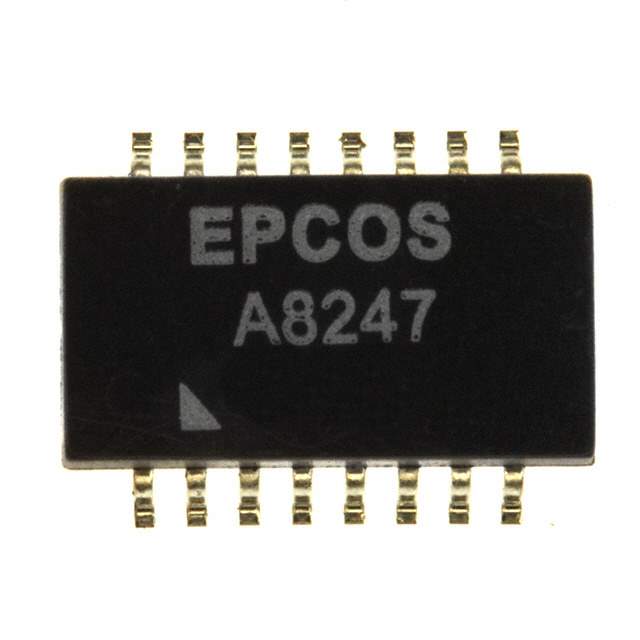

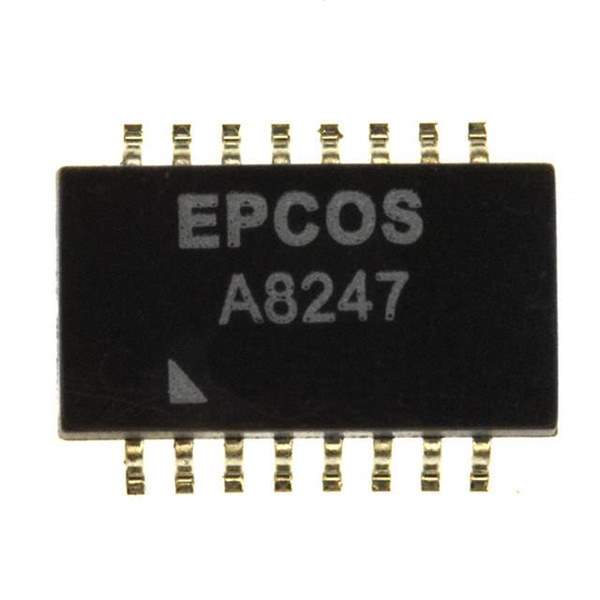

B78476A8247A003 Real Image
Same model may have multiple batches, images only for reference.

B78476A8247A003

Part No B78476A8247A003
Manufacturer EPCOS (TDK)
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT 350UH / 350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr EPCOS - TDK Electronics
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.500" L x 0.272" W (12.70mm x 6.90mm)
Height - Seated (Max) 0.230" (5.85mm)
Temperature Range - Operating -40°C ~ 85°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names B78476A8247A 3,495-4025-6,B78476A8247A3,495-4025-1,495-4025-2,B78476A8247A 3,Q6795010AAA
Standard Package 500
Win Source Part Number 1047926-B78476A8247A003
Ultra Librarian 3D Model Ultra Librarian B78476A8247A003 CAD Model

Description

The EPCOS (TDK) 1047926-B78476A8247A003 is a LAN pulse transformer that is designed for use in a wide range of electronic applications.

  • Type: LAN Pulse Transformer
  • Height: 0.230" (5.85mm)
  • Dimensions: 0.500" L x 0.272" W (12.70mm x 6.90mm)
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • Status: Active
  • Supply and Demand: Balance
