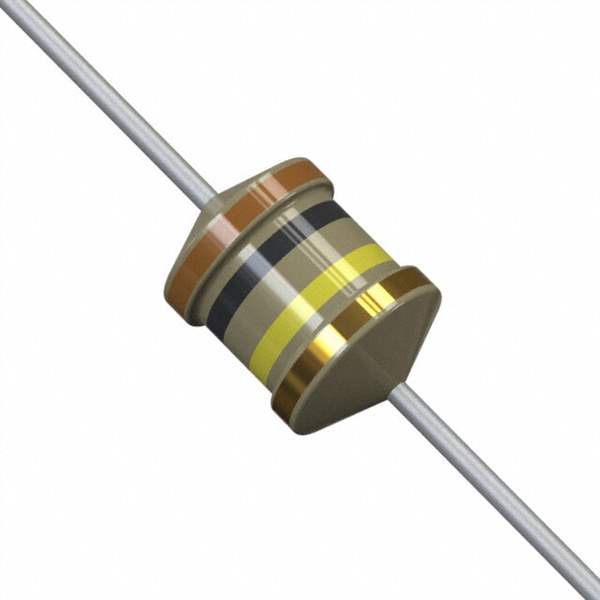

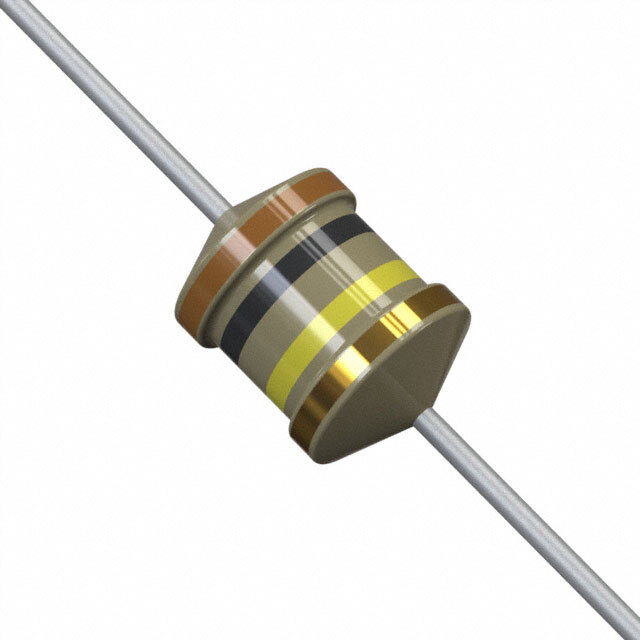

B82144F1107J000 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82144F1107J000

Part No B82144F1107J000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description 100 mH Unshielded Drum Core, Wirewound Inductor 20 mA 490Ohm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr EPCOS - TDK Electronics
Series B82144F1
Packaging Tape & Reel (TR)Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 mH
Tolerance ±5%
Current Rating (Amps) 20 mA
Shielding Unshielded
DC Resistance (DCR) 490Ohm Max
Q @ Freq 40 @ 79.6kHz
Frequency - Self Resonant 180kHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.256" Dia x 0.362" L (6.50mm x 9.20mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1488792-B82144F1107J000
Ultra Librarian 3D Model Ultra Librarian B82144F1107J000 CAD Model
