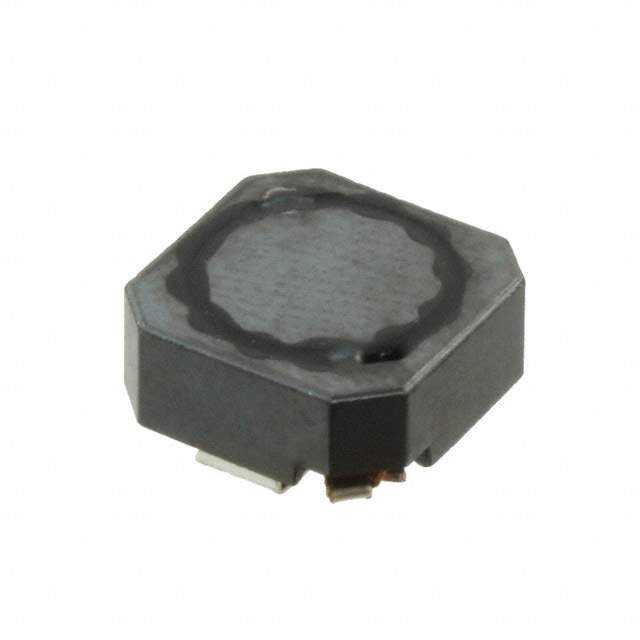

Same model may have multiple batches, images only for reference.

B82464G4223M

Name: B82464G4223M
Brand: EPCOS (TDK)
SKU: 1047965
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B82464G4223M
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 2.25A 0.052Ohm DCR Automotive T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	Nonstandard
Composition	Wirewound
Core Material	Ferrite
Current Rating	2.25 A
DC Current	2.25 A
DC Resistance (DCR)	52 mΩ
Depth	10.4 mm
Height	4.8 mm
Height - Seated (Max)	4.8006 mm
Inductance	22 µH
Inductance Tolerance	20 %
Lead Free	Yes
Length	10.4 mm
Max DC Current	2.25 A
Maximum Operating Temperature	150 °C
Military Standard	Not
Min Operating Temperature	-55 °C
Mount	Surface Mount
Number of Pins	2
Packaging	Cut Tape
Radiation Hardening	No
Ratings	AEC-Q200
REACH SVHC	No SVHC
Resistance	52 mΩ
RMS Current (Irms)	2.25 A
RoHS	Compliant
Saturation Current	2.5 A
Schedule B	8504500000, 8504500000
Self Resonant Frequency	13 MHz
Shielding	Shielded
Termination	SMD/SMT
Test Frequency	100 kHz
Tolerance	20 %
Weight	2.000002 g
Width	10.4 mm
Win Source Part Number	1047965-B82464G4223M
Categories	Fixed Inductors
Manufacturer	EPCOS (TDK)
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian B82464G4223M CAD Model

Alternative Products

Description

The EPCOS (TDK) part number 1047965-B82464G4223M is a fixed inductor that features a shielding, a current rating of 2.25 A, and an inductance of 22 µH.

Shielding: Yes
Current Rating: 2.25 A
Inductance: 22 µH
Tolerance: 20 %
DC Resistance (DCR): 52 mΩ
Packaging: Cut Tape
Termination: SMD/SMT
Mounting Style: SMD (SMT)
Case or Package: Non-Standard
Lead-Free: Yes
RoHS Compliant: Yes
Maximum Operating Temperature: 150 °C
Minimum Operating Temperature: -55 °C
