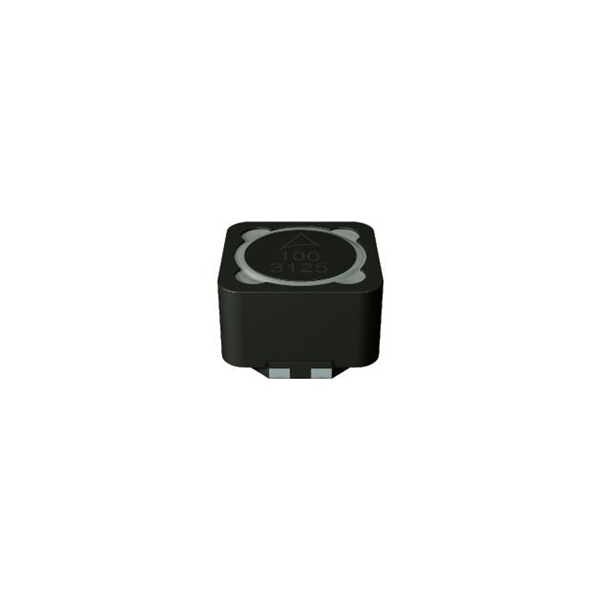

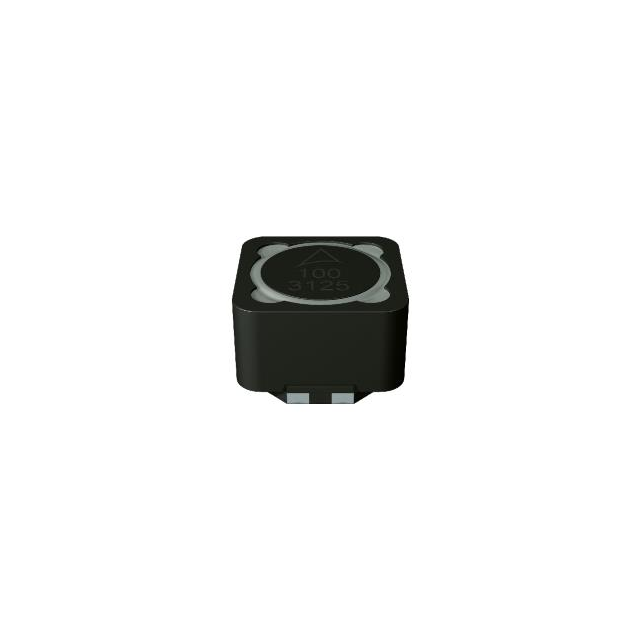

B82477D4103M000 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82477D4103M000

Part No B82477D4103M000
Manufacturer EPCOS (TDK)
Catalog Arrays, Signal Transformers
Description Shielded 2 Coil Inductor Array 40 µH Inductance - Connected in Series 10 µH Inductance - Connected in Parallel 21mOhm Max DC Resistance (DCR) - Parallel Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82477D4
Packaging Reel - TR
Number of Coils 2
Inductance - Connected In Parallel 10 µH
Inductance - Connected In Series 40 µH
Tolerance ±20%
Current Rating - Series 3.75 A
Current Saturation - Parallel 6.5 A
Current Saturation - Series 3.25 A
DC Resistance (DCR) - Parallel 21mOhm Max
DC Resistance (DCR) - Series 84mOhm Max
Shielding Shielded
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.335" (8.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1482480-B82477D4103M000
Ultra Librarian 3D Model Ultra Librarian B82477D4103M000 CAD Model
