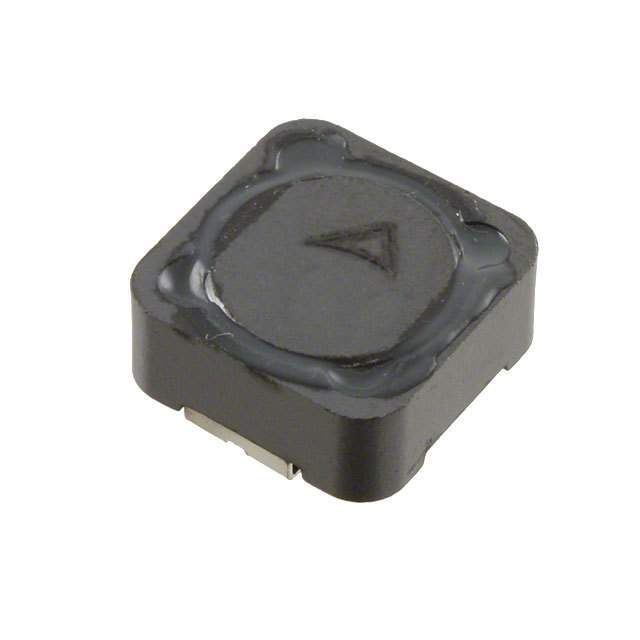

Same model may have multiple batches, images only for reference.
B82477G2683M000 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B82477G2683M000

Part No B82477G2683M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 68UH 1.5A 120 MOHM SMD / Inductor Power Shielded Wirewound 68uH 20% 1KHz Ferrite 1.5A 0.12Ohm DCR T/R
Datasheet
B82477G2683M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Series B82477G2
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 68μH
Tolerance ±20%
Current Rating 1.5A
Shielding Shielded
DC Resistance (DCR) 120 mOhm Max
Operating Temperature Range -55°C ~ 125°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.484" L x 0.484" W (12.30mm x 12.30mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Win Source Part Number 769580-B82477G2683M000
Popularity Medium
Supply and Demand Status Balance
Family Name B82477G2
Introduction Date May 09, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B82477G2683M000 CAD Model

Description

The B82477G2 series wirewound inductor manufactured by EPCOS (TDK) is a high-quality electronic component.

  • Current Rating: 1.5A
  • Inductance: 68μH
  • Core Material: Ferrite
  • Shielding: Shielded
  • Tolerance: ±20%
  • Package: Non-standard
  • Dimension: 0.484" L x 0.484" W (12.30mm x 12.30mm)
  • Height: 0.236" (6.00mm)
