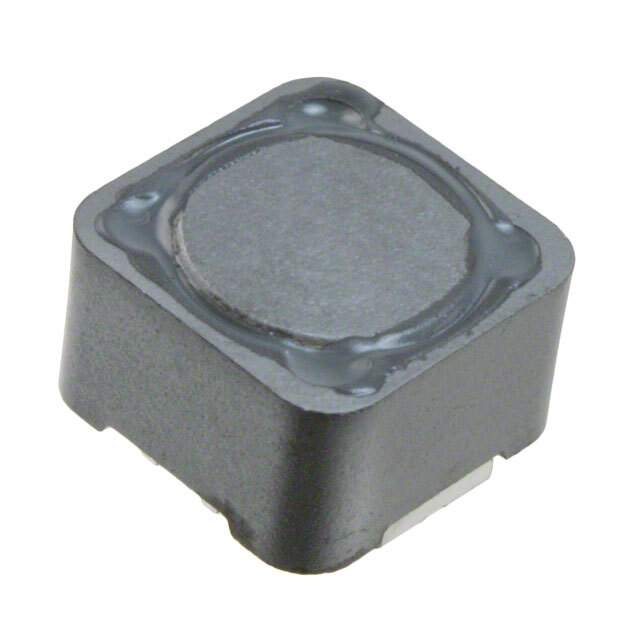

B82477G4222M Real Image
Same model may have multiple batches, images only for reference.

B82477G4222M

Part No B82477G4222M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 2.2UH 8A 10 MOHM SMD
Datasheet
B82477G4222M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 8A
Current - Saturation 11A
DC Resistance (DCR) 10 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.236" (6.00mm)
Win Source Part Number 200234-B82477G4222M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82477G4222M CAD Model

Description

Overview

The B82477G4222M inductor is engineered for seamless integration into a variety of electronic projects. Known for its high reliability and efficiency, this component is a suitable choice for demanding applications that require superior performance standards.

Applications

  • Consumer Electronics
  • DC-DC Converters
  • Filtering Applications
  • RF Circuits

Features and Benefits

  • Robust Construction: Offers long-lasting performance and durability.
  • High Current Rating: Supports significant power handling capabilities.
  • Low Profile: Ideal for compact and space-constrained designs.
  • Excellent Q Factor: Ensures high efficiency and optimal performance.
