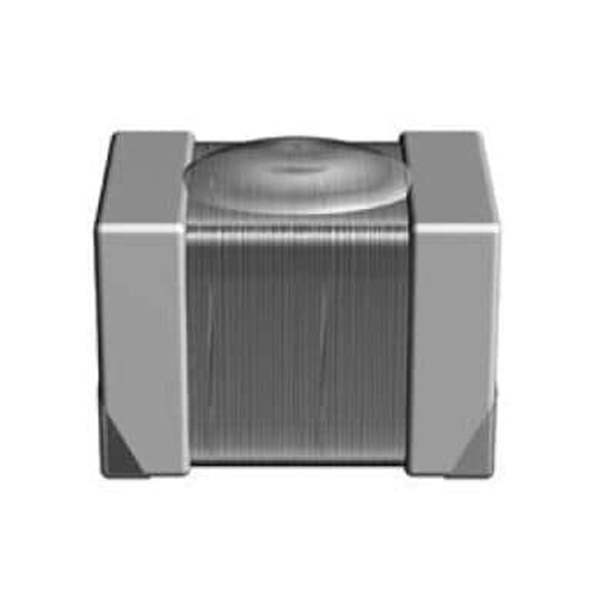

B82498B3220J000 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82498B3220J000

Part No B82498B3220J000
Manufacturer EPCOS (TDK)
Catalog Inductors, Coils, Chokes
Description SMT-INDUCTOR 0805 22 NH 5%
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, ChokesFixed Inductors
Mfr EPCOS - TDK Electronics
Series B82498B
Packaging Tape & Reel (TR)
Part Status Last Time Buy
Type Wirewound
Material - Core Ceramic
Inductance 22 nH
Tolerance ±5%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 90mOhm Max
Q @ Freq 45 @ 250MHz
Frequency - Self Resonant 2.6GHz
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max) 0.057" (1.45mm)
Package Tape & Reel (TR)
Product Status Last Time Buy
Inductance 22nH
Current Rating (Amps) 600mA
DC Resistance (DCR) 90 mOhm Max
Inductance Frequency - Test 250MHz
Height - Seated (Max) 0.057\
