Same model may have multiple batches, images only for reference.

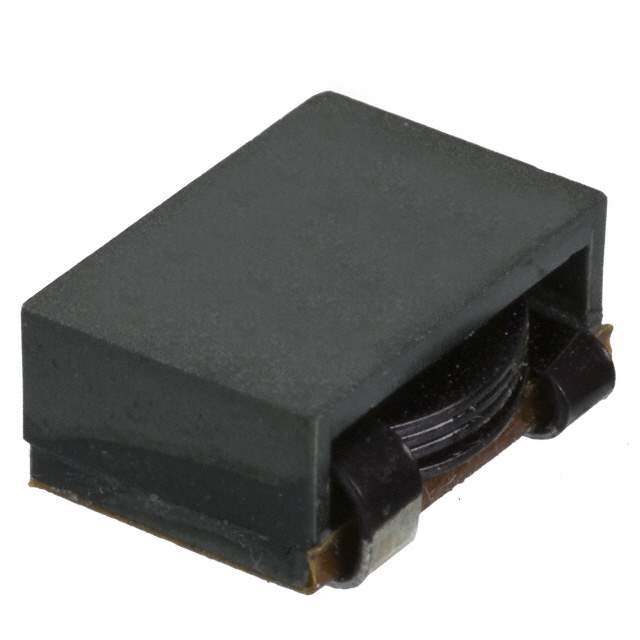

B82559A0142A013 Real Image
Same model may have multiple batches, images only for reference.

B82559A0142A013

Part No B82559A0142A013
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 1.4UH 22A 1.5 MOHM SMD / 1.4 µH Shielded Drum Core, Wirewound Inductor 22 A 1.5mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series ERU13 - Flat Wire Inductor
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.4 µH
Tolerance ±10%
Current Rating (Amps) 22 A
Current - Saturation (Isat) 22A
Shielding Shielded
DC Resistance (DCR) 1.5mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 10 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.421" W (13.00mm x 10.70mm)
Height - Seated (Max) 0.236" (6.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names B82559A142A13,-495-1861-1-ND,495-1861-6,495-1861-1,B82559A 142A 13,-495-1861-1,495-1861-2,-B82559A142A13
Standard Package 500
Win Source Part Number 1002540-B82559A0142A013
Ultra Librarian 3D Model Ultra Librarian B82559A0142A013 CAD Model

Description

The ERU13 - Flat Wire Inductor series of fixed inductors by EPCOS - TDK Electronics has an inductance of 1.4 µH and a current rating of 22 A.

  • Series: ERU13 - Flat Wire Inductor
  • Inductance: 1.4 µH
  • Current Rating: 22 A
  • Height (Seated): 0.236" (6.00mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Maximum DC Resistance: 1.5mOhm
