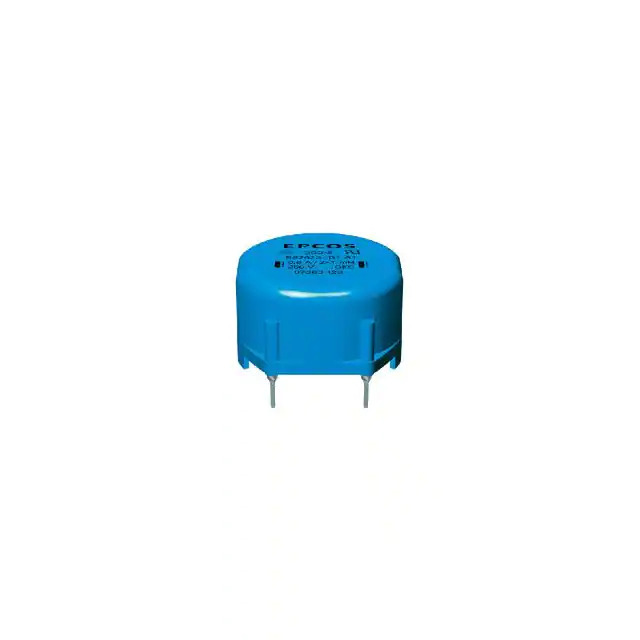

B82623G0001A008 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B82623G0001A008

Part No B82623G0001A008
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 330UH 1A 2LN TH PFC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82623
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 330 µH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 400mOhm (Typ)
Voltage Rating - DC 350V
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Ratings -
Approval Agency ENEC, UR, VDE
Features PFC
Mounting Type Through Hole
Size / Dimension 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) 0.740" (18.80mm)
Package / Case Horizontal, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369412-B82623G0001A008
Ultra Librarian 3D Model Ultra Librarian B82623G0001A008 CAD Model

Description

The B82623G0001A008 is a common mode choke from the B82623 series by EPCOS - TDK Electronics.

  • Application: Power Line Filtering
  • Temperature Range: -40°C to 125°C
  • Voltage Rating (AC): 250V
  • Voltage Rating (DC): 350V
  • Mounting Type: Through Hole
  • Package: Horizontal, 4 PC Pin
