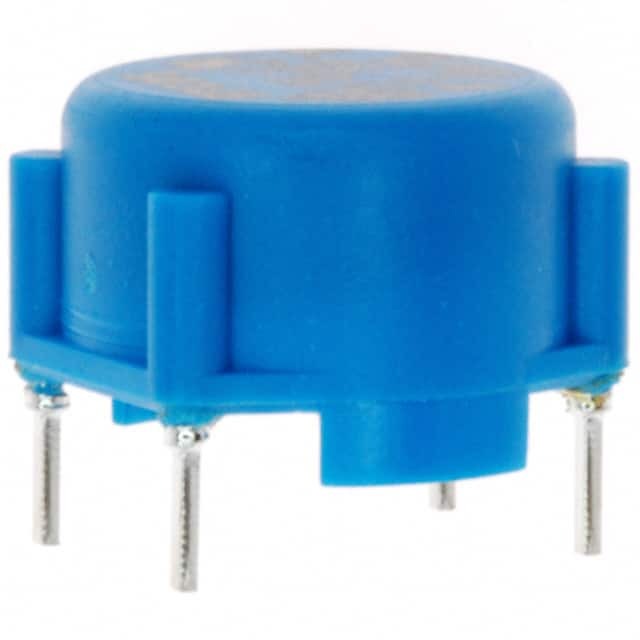

Same model may have multiple batches, images only for reference.
B82721A2202N001 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B82721A2202N001

Part No B82721A2202N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 1MH 2A 2LN TH  /  1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 80mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82721
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 80mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) 0.496" (12.60mm)
Package / Case Horizontal, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 495-2724,B82721A2202N 1,B82721A2202N1,B82721A2202N 1
Standard Package 600
Win Source Part Number 1013753-B82721A2202N001
Ultra Librarian 3D Model Ultra Librarian B82721A2202N001 CAD Model

Description

The B82721 series from EPCOS-TDK Electronics is a common mode choke filter designed to provide high performance in power line applications.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 2A
  • Mounting Type: Through-Hole
  • Package/Case: Horizontal, 4 PC pin
  • Filter Type: Power Line
  • Lines: Two
  • Inductance: 1 mH @ 100 kHz
  • DC Resistance (DCR): 80mOhm (Typ)
  • Temperature Range: -40°C to 125°C
  • Package: Tray
  • Standard Package: 600
  • ECCN: EAR99
  • REACH Affected: Yes
