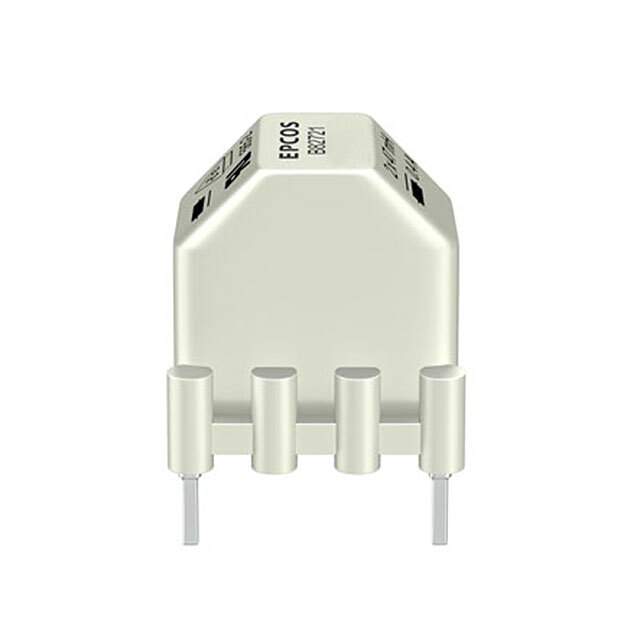

B82721K2701N20 Real Image
Same model may have multiple batches, images only for reference.

B82721K2701N20

Part No B82721K2701N20
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 10MH 700MA 2LN TH
Datasheet
B82721K2701N20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10mH @ 10kHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 550 mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.823" (20.90mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 049015-B82721K2701N20
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82721K2701N20 CAD Model

Description

Description

The B82721K2701N20 is renowned for its exceptional capability in handling EMI issues, making it highly effective in high-frequency circuits.

Features and Benefits

  • High-Frequency Performance: Optimized for high-frequency applications.
  • Stable Operation: Provides consistent performance under varying conditions.
  • Durable Construction: Built to withstand rigorous usage.

Applications

  • Switching Power Supplies
  • Embedded Systems
  • Signal Processing Circuits

Additional Details: The product's high impedance over a broad frequency range ensures reliable EMI suppression.
